Super Anchor Safety CRA-4 HLL 4-Way Anchors

The CRA-4 4-Way anchor line allows multiple horizontal lifeline segments to intersect on a single anchor point. Models 1032-4G, 1033-4G, 1042-4G offer riser heights of 12", 18", and 24" respectively, with foam-filled risers and a cast loop top. Each unit is rated for a 5,000 lb minimum base tensile strength and is engineered to support intersection of up to four HLL directions.

Key Features

• Multi-direction horizontal lifeline intersection anchor (4-Way)
• Foam-filled riser for durability and sealing
• Compatible with up to four HLL connections
• 5,000 lb tensile base rating
• Available in HDG, 304, or 316 stainless steel

• Device: Permanent 4-way tie-back / horizontal lifeline (HLL) anchor for fall protection
• Intended Use: Single-user fall arrest from any direction; multi-user only as part of an engineered HLL or restraint system

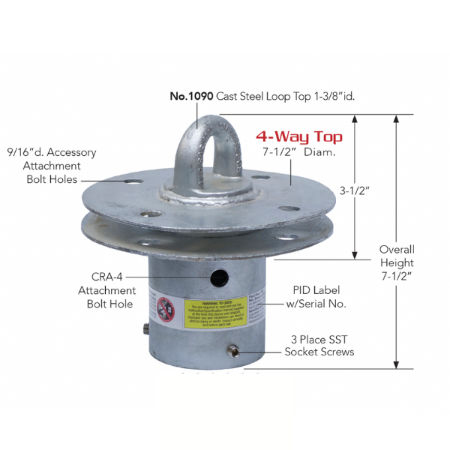

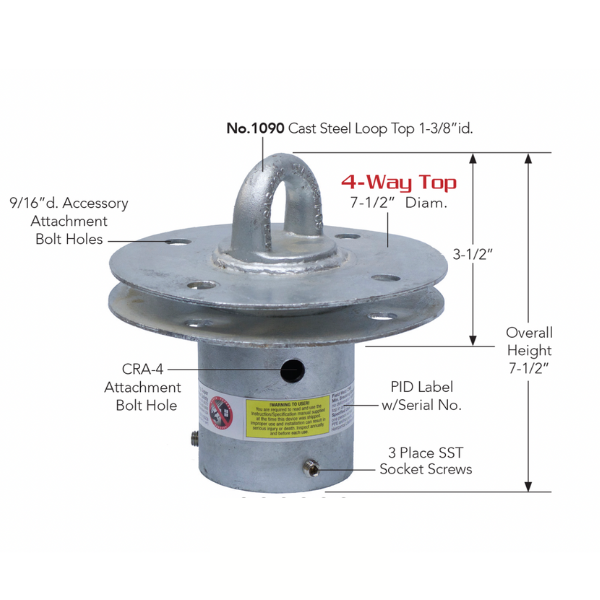

• Configuration: Four opposed connection points (N/E/S/W) with loop-tops for 360� service
• Structure Attachment: Structural steel or concrete via through-bolts, welds, or approved anchors per engineer of record
• Material: A36 carbon steel or 316 stainless steel (loop-tops and plate)
• Finish Options: Hot-dip galvanized (ASTM A123) or stainless (passivated)
• Base Plate: Approximately 8 in � 8 in � 1/2 in plate (some installations may use 6 in � 6 in � 3/8 in per detail)
• Overall Height: About 2�3 in above plate to loop centerline
• Connector Openings: Loop-top inside diameter approximately 2.0 in (smooth radius for hooks/carabiners)
• Weight: Approximately 11�13 lb per anchor (shipping kit typically 12�15 lb depending on hardware/finish)
• Minimum Tensile/Breaking Strength: 5,000 lb in any direction of applied load
• Design Load (4:1): 1,250 lb working design load when used as designed
• Proof Load (W-Suffix Models): Up to 2,500 lb during certification/proof testing
• Temperature Range: ?30 �F to 130 �F typical service environment
• Compatible Connectors: ANSI-compliant locking snap hooks or carabiners
• HLL Capability: Supports engineered 2-person fall arrest or 3-person restraint when designed/approved by a qualified person
• Markings/ID: Serialized tag/label area for inspection, rating, and re-certification records
• Compliance: OSHA 1926.502 / 1910.140; ANSI Z359.1 / A10.32; IWCA I-14.1; Cal-OSHA �3291 where applicable
• Installation Notes: Maintain edge distances and clearances; align load path straight to structure; do not attach to roofing or non-structural elements

• Select riser height model based on roof clearance and application.

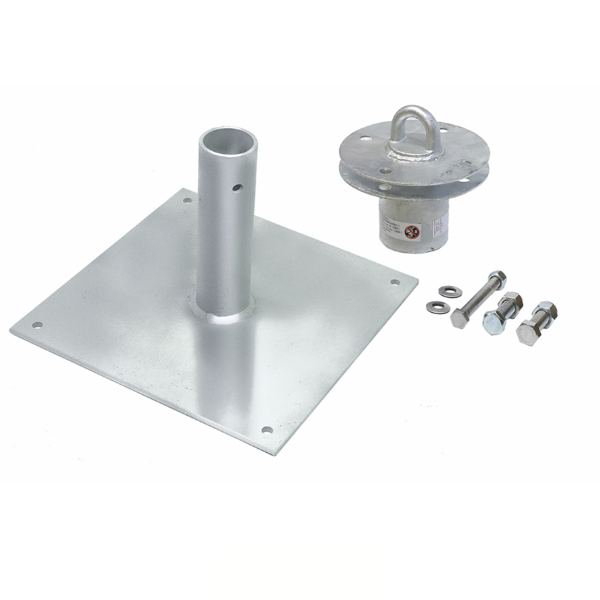

• Install base plate to the structural surface using bolts, embedment, or welds per engineered design.
• Attach the 4-way loop top fixture with supplied bolt, lock nut, and sealed washers.
• Connect horizontal lifelines in up to four directions at the loop top.
• Perform proof load test and inspection before placing into service.

Q: What are the differences between 1032-4G, 1033-4G, and 1042-4G?
A: They differ by riser height: 12, 18, and 24 inches.

Q: How many lifelines can connect to one anchor?
A: Up to four lifeline segments can connect to the 4-Way loop top.

Q: What is the tensile strength rating?
A: Each anchor has a 5,000 lb base tensile strength.

Q: What materials and finishes are available?
A: Hot-dip galvanized, 304 stainless steel, and 316 stainless steel.

Q: What standards do these anchors meet?
A: They meet ANSI Z359.18-17 Type A/T and OSHA 1926.502 requirements.
