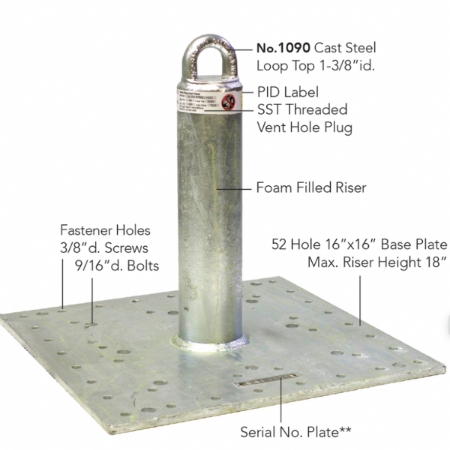

Super Anchor Safety CRA-W Loop Top Anchors- 12", 18", 24"

The Super Anchor 1032-W, 1033-W, and 1042-W CRA-W posts are permanent loop-top anchor points intended for tie-off and window washing systems. They provide certified anchorage with a minimum breaking strength of 5,000 lb and loop tops rated up to 10,000 lb. Each model differs by riser height (12", 18", 24") to suit different roof and application requirements.

Features

• Loop top anchor posts designed for single user PPE tie-off
• Minimum breaking strength: 5,000 lb
• Loop top tensile rating: up to 10,000 lb
• Available in hot-dip galvanized, 304 and 316 stainless steel finishes
• Suitable for roof tie-off, window washing, and horizontal lifeline end/intermediate applications

• Device: permanent loop-top tie-back / PPE anchor for single-user fall arrest; 360-degree use for restraint
• Base plate: 6 in × 6 in × 3/8 in plate (engineered bolt/weld detail required)
• Connector: 2 in loop-top (smooth radius for snap hooks/carabiners)
• Materials: A36 carbon steel or 316 stainless steel
• Finish options: hot-dip galvanized (ASTM A123) or stainless (passivated)
• Temperature range: −30 °F to 130 °F
• Strength (typical): minimum tensile 5,000 lb; ultimate 5,000 lb in any direction; design load (4:1) 1,250 lb
• Proof load (models with “W” suffix): up to 2,500 lb
• Compliance (when installed per engineered detail): OSHA 1926.502 / 1910.140; ANSI Z359.1 / A10.32; IWCA I-14.1; Cal-OSHA §3291 (where applicable)

Per-size details

• 12" model
  • Riser height: 12 in (to loop centerline)
  • Overall height from plate: ~12–13 in
  • Weight: ~6.5–7.5 lb (finish and hardware dependent)
• 18" model
  • Riser height: 18 in (to loop centerline)
  • Overall height from plate: ~18–19 in
  • Weight: ~8.0–9.2 lb
• 24" model
  • Riser height: 24 in (to loop centerline)
  • Overall height from plate: ~24–25 in
  • Weight: ~9.5–11.0 lb

Installation notes (summary)

• Mount only to structural steel or concrete (or through structural framing) using the engineer-of-record’s fastener/weld schedule.
• Keep the load path straight to structure and align with the expected service direction; maintain required edge distances and clearances.

• Determine the proper riser height (12", 18", or 24") based on roof profile and clearance needs.
• Place the base plate and fasten to the structural deck via screws, bolts, or welds per engineer design.
• Secure the loop top vertically; ensure alignment and load path.
• Attach flashing or sealing components to ensure waterproofing.
• Before first use, perform proof load (not exceeding maximum allowable per manual) and inspect anchor integrity.

Q: What is the difference between 1032-W, 1033-W, and 1042-W?
A: They differ by riser height: 12", 18", and 24" respectively.

Q: What load rating do these anchors have?
A: Minimum breaking strength is 5,000 lb, with loop top ratings up to 10,000 lb.

Q: What finishes are available?
A: Hot-dip galvanized, 304 stainless steel, and 316 stainless steel.

Q: What standards do they comply with?
A: OSHA 1926.502, ANSI Z359.18, CSA Z259.15, and ANSI/IWCA I-14.1 for window washing.

Q: How should these anchors be installed?
A: Use screws, bolts, concrete embedment, expansion anchors, or field weld per engineering layout, then proof test and inspect.
