Description

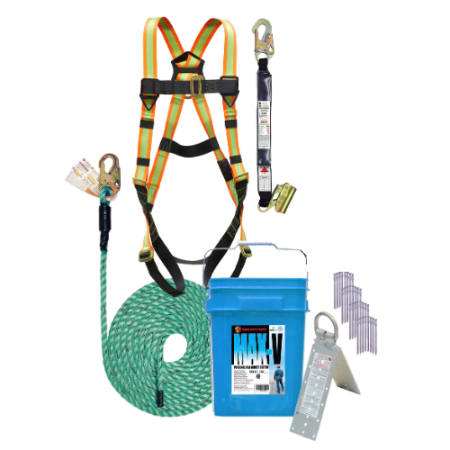

Our updated entry-level fall protection safety kit the MAX-V is brimming with features all packaged in a convenient storage bucket. The easiest and least expensive way to achieve OSHA compliance and not sacrifice comfort or safety. This kit includes the Maxima 5/8” diameter 3-strand vertical lifeline, Value harness universal size with 5-points of adjustment in our Hi-vizH webbing, Max Force energy absorber with Snaphook and integral adjuster mechanical rope grab, Hinge-2 reusable and fully adjustable roof anchor with fasteners, instruction manual, and a heavy-duty storage bucket with all contents packed inside. A complete fall arrest kit.
Each Kit Contains:
Universal Fit Harness:
- Fall Indicator Labels
- Warning/Inspection Labels
English-French-Spanish
- Quick Connect Adjuster Buckles
- Polyester webbing
- Max User Weight: 340 lbs.
Maxima Lifeline:
- 50ftx 5/8” 3 strand Copolymer CSA Z 259.11-05 Class F-Lanyard
ANSI Z 359.1-07/OSHA 1926:502 Mfg. in the USA
- Aluminum Swage Eye Splice w/ Adhesive PVC cover
- 10,500lb strength rating
- English-French-Spanish Warning Label
- Inspection Label
Mechanical Rope Grab:
- Zinc plated steel
dual locking cam
- Factory attached to
the Energy Absorber
Snap Hooks:
- Double locking
- 3,600lb(16kN) gate strength
- ANSI Z359.12-09/CSA Z259.12-01
Universal Re-usable fall Arrest Anchor:
- Compliance:OSHA 1926:502
ANSI Z359.1-07/ANSI A10.32-2012
- Adjustable up to 12/12° slope
- Heavy Duty 11 gauge 430 stainless steel
- Replaceable labels
- 7/32”d. holes accepts
16d nails and #12 Screws
Mechanical Grab/Energy Absorber Combo:
- Complies with ANSI Z 359.12-09
and Z 359.1-07
- Integrated unit for lighter weight
- Grab and Absorber available separately
- Double locking snaphooks
with Z359.12-09 rating
E-4 Energy Absorber:
- Max user wt. 310lb
- Max. arrest force 900lb
- Max. length deployment 42 in.
- Clear shrink tube cover
- Fall indicator/inspection label
Fastener Pack:
- 36 pc Duplex nails included
w/ each Max-V kit
Specifications
- Fall Protection Rating - Fall Arrest and Fall Restraint
- Worker Capacity - 340 pounds maximum including tools
- Harness Type - Rear D-Ring minimum 5,000 lbs tensile strength, proof loaded to 3,600 lbs
- Harness Specifications - 1-3/4” polyester. Minimum breaking strength 6,000 lb
- Harness Configuration - Rear D-ring, 5-point adjustment, coated adjuster buckles minimum 4,000 lbs breaking strength
- Lifeline Specifications - 5/8” Copolymer, 10,582 pound strength, 340 pounds MAX user weight
- Lifeline Configuration - 50’ Length with Z359 Snaphook and Aluminum Swage
- Anchor Type - Hinge2 Roof Anchor with Duplex nail fasteners
- Anchor Rating - Fall Arrest and Fall Restrain - see Manual for Fastener Options
- Anchor Fasteners - 3-1/2” bright 16d duplex nails, package of 36. Temporary use only
- Energy Absorber - Maximum Arresting Force of 900 pounds with Integral 5/8” Rope Grab
- Mechanical Rope Grab - 5/8” Dual Cam Grab with Integral Energy Absorber
- OSHA Standard - 1926:502, 1910:66
- ANSI Standard - Z359.11-2014
- Warning Labels - HD permanent attached and protected Warning and Inspection labels
- Storage Bucket - 3.5 Gallon square bucket with lid
