Super Anchor Safety 2x4, ARS – Asphalt Shingle & Wood Shake

The Super Anchor ARS 2×4 anchors are permanent stainless steel roof anchors designed for residential structures. Models 2830, 1022, and 1030 each provide a secure tie-off point for one user and integrate with roofing systems using included TPE flashing and stem covers. Built to a 5,000 lb minimum breaking strength, these anchors are OSHA and ANSI compliant and designed for long-term service life.

Features

• Permanent stainless steel roof anchors for 2×4 framing
• Minimum tensile strength 5,000 lb
• Supports up to 340 lb user including tools
• Supplied with flashing base, stem cover, and hardware
• OSHA and ANSI compliant

• Device: permanent roof anchor for 1-person fall protection
• Roof/finish type: asphalt shingles and wood shake (flashed, low-profile installation)
• Structure attachment: 2×4 truss/rafter top chord (wood framing)
• Material: 11- or 14-gauge 430 stainless steel (some variants Dacromet-coated mild steel)
• Flashing base: injection-molded PVC flashing (included)
• Stem cover: injection-molded plastic cap with tether
• Minimum tensile/breaking strength: 5,000 lb (22 kN)
• Maximum user weight: 340 lb including tools and equipment
• Temperature rating: −30 °F to 120 °F
• Hardware: 5/16-18 × 2-1/4 in Grade 8 bolt with locknut; small stainless nails for positioning only (not primary attachment)
• Connector opening: ~1.0 in diameter (accepts standard locking hooks/carabiners)
• Service zones: fall arrest within ±30° of vertical; 360° allowed in restraint where no free-fall exists
• Dimensions (flashing base): ~8 in × 10 in
• Dimensions (installed height): stem projects ~6–6.5 in above finished roof
• 2×4 member fit: seats over nominal 2×4 (approx. 1.5 in × 3.5 in) top chord
• Roof slope compatibility: up to ~24/12 when installed per manual; can lay flat on deck during install
• Weight (kit): ~2.2–3.0 lb (anchor, flashing, stem cover, hardware)
• Placement guidance: typically 12–18 in below ridge over structural member; use only after sheathing and bracing are complete
• Compliance: OSHA 1926.502 and 1910.66; ANSI Z359.1-07 and A10.32-2012; CSA Z259.11-05 (for applicable products)

• Place the anchor on the 2×4 top chord before installing roof sheathing.
• Secure anchor with supplied Grade 8 bolt and locknut through the framing.
• Fasten the base using the provided Teco nails.
• Install the TPE flashing and integrate it with roofing underlayment.
• After roof covering is complete, install the stem cover and inspect anchor.

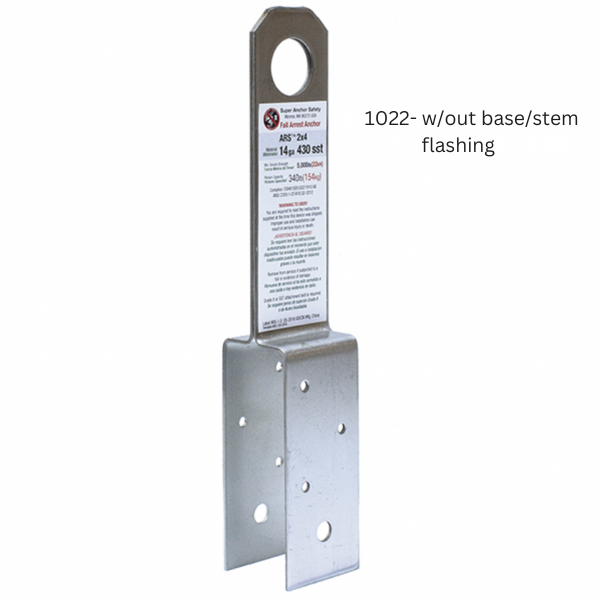

Q: What is the difference between 2830, 1022, and 1030?

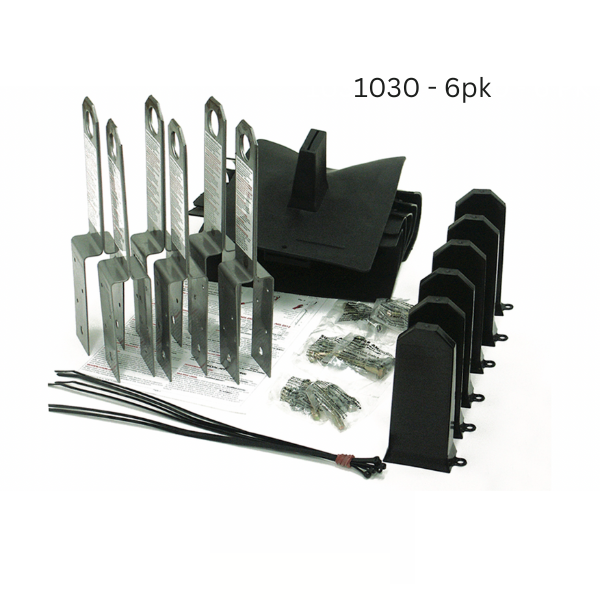

A: 2830 and 1022 are sold as single anchors, while 1030 is a 6-pack.

Q: What framing sizes do these anchors support?
A: They are designed for 2×4 rafters and can be used with larger rafters via the drill-through method.

Q: What is the minimum breaking strength?
A: 5,000 lb minimum tensile strength.

Q: What is the maximum user weight?
A: 340 lb including tools and equipment.

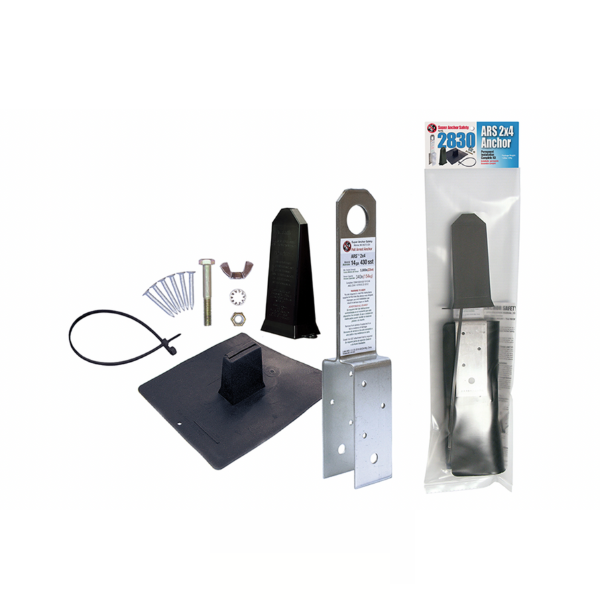

Q: What comes with each anchor?
A: Each anchor includes a flashing base, stem cover, Grade 8 bolt, locknut, and nails.
