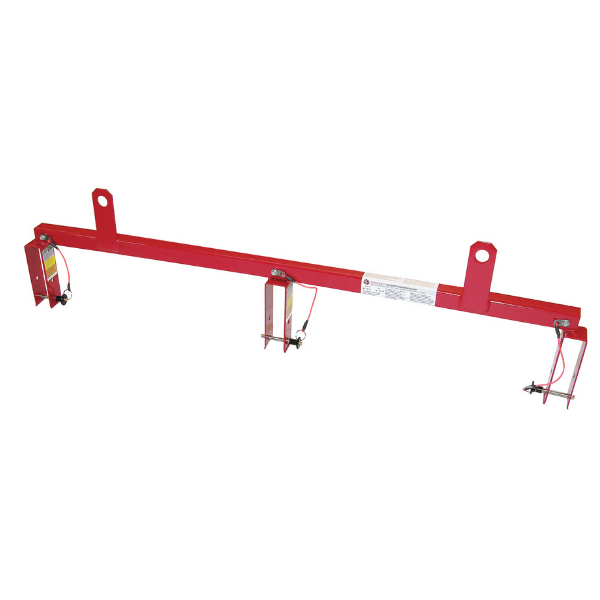

Super Anchor Safety 1012 - Combo Safety Bar for 2x4/2x6 Trusses

The Combo Safety Bar is a temporary, reusable open-framing anchor designed to protect crews during the truss-setting phase—before sheathing is installed. It spans three trusses, auto-gauges spacing at 24 inches on center, and locks on with stainless detent pins. The dual-size saddle design fits both 2x4 and 2x6 top chords, so one bar covers multiple framing packages. Rated for two users when used with appropriate PFAS components, the bar provides a rugged, highly visible tie-off point that sets up in seconds and comes off just as fast when the roof advances.

Features

• Dual-size compatibility: fits 2x4 and 2x6 top chords with the same bar
• Three-truss span that auto-gauges 24 in on center for quick, consistent placement
• Temporary, reusable anchorage for the open-framing stage; remove prior to sheathing
• Two-person rating when used as part of a properly designed PFAS; typical max 310 lb per user including tools and equipment
• High strength anchorage with a 5,000 lb minimum rating (use within the stated service limits)
• Stainless steel detent pins lock the bar to the trusses without driving fasteners into the chords
• Works with energy-absorbing lanyards or self-retracting lifelines; follow required fall-clearance calculations
• Powder-coated steel construction for jobsite durability and high visibility
• Use limitations: personal fall arrest anchorage only—do not use as structural bracing, alignment, or lifting device
• Standards alignment suitable for jobsite use when installed and used per instructions (OSHA 1926.502, ANSI Z359.1)

• Device: 3-truss anchor, temporary use, up to 2 persons
• Fall protection rating: Fall arrest and fall restraint
• Structure attachment: wood trusses — fits 2x4 and 2x6 top chords
• Materials: powder-coated mild steel bar; stainless steel detent pins
• Dimensions: 24 in on-center leg spacing; 48 in overall length
• Weight: approx. 17 lb (package weight)
• Minimum breaking strength: 5,000 lb
• Average tensile strength: 5,000 lb
• Maximum user weight: 340 lb including tools and equipment
• Hardware: stainless steel detent pins
• OSHA standard: 1926.502
• ANSI standards: Z359.1-07 and A10.32-2012

• Q: When should I use the Combo Safety Bar on a job?
  A: During the open-framing phase while trusses are being set and before roof sheathing goes down. Remove the bar prior to sheathing and switch to permanent anchors for subsequent work.
• Q: How should it be positioned and secured on the trusses?
  A: Span three adjacent trusses, seat the saddles fully on the top chords (fits 2x4 or 2x6), and lock it in place with the stainless detent pins per the instructions. Confirm trusses are properly braced and at 24" on-center before anyone ties off.
• Q: How many users can tie off and what connections are allowed?
  A: Up to two users when used as part of a properly designed PFAS. Connect with ANSI-compliant locking hooks/carabiners and energy-absorbing lanyards or SRLs. Do not mix incompatible components and do not rig a horizontal lifeline unless a qualified person has engineered and approved it.
• Q: What inspection and removal-from-service practices apply?
  A: Perform a pre-use check each shift and periodic competent-person inspections. Remove from service if it has been subjected to a fall or shows deformation, cracks, corrosion, damaged pins, or other defects. Store dry and clean; never use it as structural bracing, alignment, or a lifting device.
