Best Price Guaranteed
Price: $41.79
    Item #SAS-1004A
    Write a review!
    Quantity:

    Description

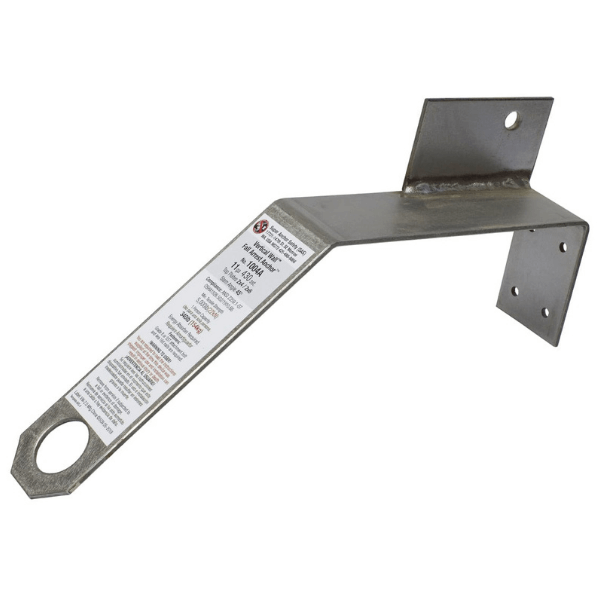

    The Vertical Wall anchors are designed for exterior wall applications as an overhead anchorage device that is nearly invisible from the ground. Fabricated from 11-gauge 430 stainless steel in two models to adapt to varying slope roofs.

    The install at the wall plate and top chord junction with a single bolt and 4 16d vinyl sinkers that are supplied with each anchor. Perfect for siders, window installers and painters. Can be painted for minimum visual effect. Designed to accommodate the bird blocking component on low or steep slopes.

    • Permanent Low-Profile Fall Arrest Anchor
    • Fall Arrest While Working on Wall
    • No Access to Roof Needed for Wall Trades
    • 2 Models Available Depending Pitch:
      • #1004 for Roof Pitch up to 7/12
      • #1004A for Roof Pitch 8/12 and Greater

    Permanent Truss Anchor for 1 Person Fall Protection

    Fall Protection Rating: Fall Arrest and Fall Protection

    Structure Attachment: 2x4 and/or 2x6 Top Plates

    Min. Breaking Point: 5,000 Pounds

    Min. Tensile: 5,000 Pounds

    Temperature Rating: -30 Degree Fahrenheit up to 120 Degree Fahrenheit

    Hardware: 5/16"-18 x 2-1/4" Grade 8 Bolt With Locknut and 4 16d Vinyl Sinkers

    OSHA Standard 1926:502 and 1910.66

    ANSI Standard Z359.1-07 and A10.32-2012

    CSA Standard Z259.11-05 for Applicable Products

    Please read and understand the manufacturer instructions before using this product

    English Instructions | Spanish Instructions
