Price: $29.23
Item #S-5-DUALPIPE
Write a review!
Description

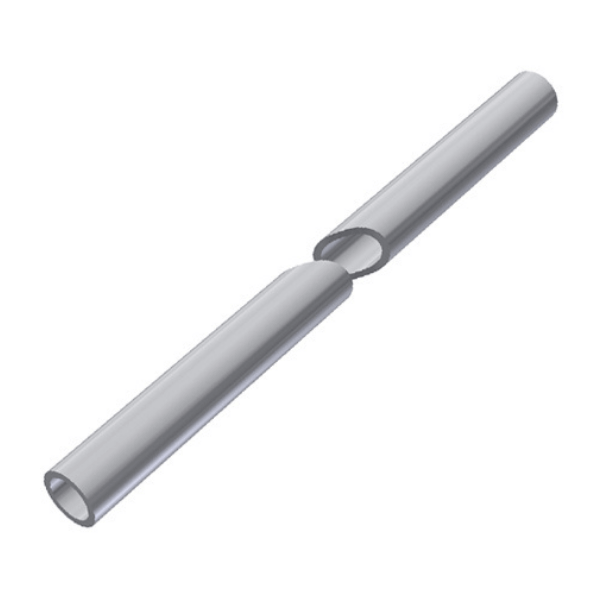

The S-5! DualPipe is the aluminum crosspipe component used in DualGard and VersaGard snow retention systems. It features a 1-inch diameter with a 1/8-inch wall for structural strength, and is engineered to integrate seamlessly with S-5! brackets, clamps, and hardware to create a durable, two-pipe snow guard assembly for metal roofs.
Key Features:
• 1" diameter aluminum pipe with 1/8" wall thickness
• Supplied in 7' 8" (DualGard) or 8' (VersaGard) lengths
• Engineered for use with S-5! DualGard and VersaGard two-pipe systems
• Compatible with DualGard splice, brackets, collars, and end caps
• Provides robust, dual-pipe snow retention performance
Specifications
• Diameter: 1 inch (25 mm), structural aluminum tube
• Wall thickness: 1/8 inch
• Lengths: 92 in (7′ 8″) for DualGard; 96 in (8′) for VersaGard
• Splice inclusion: Includes DualGard splice for thermal expansion and continuity
• Material: 6,000-series aluminum
• Compatibility: DualGard and VersaGard brackets, clamps, and accessories
How To
- Plan layout and spacing for installing DualGard or VersaGard system.
-
Install S-5! clamps or brackets at specified intervals along roof seams.
-
Place the lower DualPipe into the bracket’s lower channel and secure loosely.
-
Insert the upper DualPipe into the upper channel and secure loosely.
-
Insert splices between adjacent pipe sections as required.
-
Align both pipes and torque all fasteners to the manufacturer's specifications.
FAQs
Q: What are the dimensions of the DualPipe?
A: It is a 1-inch diameter aluminum tube with a 1/8-inch wall, supplied in either 7′ 8″ or 8′ lengths.
Q: Does the DualPipe include splices?
A: Yes, each DualPipe includes a DualGard splice to accommodate thermal expansion and ensure strength.
Q: Can I use DualPipe for both DualGard and VersaGard systems?
A: Absolutely—DualPipe is compatible with both systems, using the respective brackets and hardware.
Q: What material is the DualPipe made from?
A: It's made from 6,000-series aluminum, chosen for its strength, lightweight properties, and corrosion resistance.
