Price: $5.51
Item #S-5-DUALGARD
Write a review!
Description

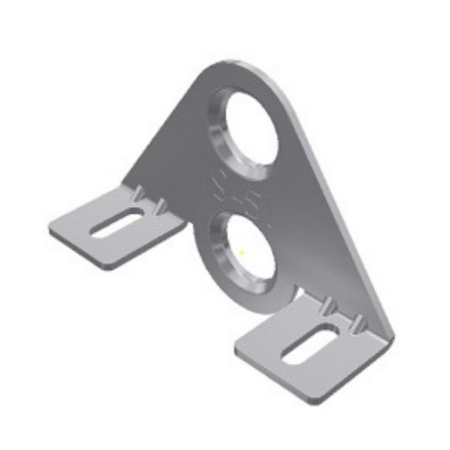

DualGard is a robust two-pipe snow guard system by S-5! designed for use on standing seam and corrugated metal roofs. It uses 1-inch diameter aluminum crossmembers (DualPipe) mounted via DualBrackets and S-5! Mini clamps or CorruBracket attachments. Optional DualClip components may be added under certain conditions to retard snow/ice migration under the bars. The system includes splices, collars, and endcaps for continuous pipe runs. It can be powder-coated or anodized to match roof finishes.
Key Features:
-
Two-pipe snow bar system with 1-inch diameter aluminum pipes
-
Dual anchoring points per bracket for lateral system stability
-
Compatible with both standing seam (using Mini clamps) and exposed fastened or corrugated roofs (using CorruBracket)
-
Optional DualClip II/III for snow/ice migration protection under crossmembers, depending on seam height
-
System includes splices, endcaps, and collars; pipes can be color finished
Specifications
- Crossmember pipe: 1-inch diameter aluminum (DualPipe), 6,000 series alloy, wall thickness approx 1/8-inch
-
Clamp type: S-5! Mini clamps on standing seam; or CorruBracket for corrugated and deck-supported roofs
-
Seam height considerations: DualClip II used when seam height ~1″ to 1½″; DualClip III for taller seams (~1.75″ to 3.25″)
-
Assembly length limit: Typical assemblies should not exceed 100 feet to limit thermal expansion; split runs if longer
-
Setscrew torque (for Mini or seam clamps on standing seam): 160-180 in-lb for 22 ga steel; 130-150 in-lb for thinner materials or other metals
-
Includes: DualPipe, DualBrackets, splices, endcaps, collars; optional DualClips
How To
- Determine roof type and panel profile (standing seam or corrugated).
-
Select required bracket type (Mini clamp bracket assembly or CorruBracket) and layout based on roof snow load using manufacturer’s calculator.
-
Install base clamps/brackets: attach Mini clamps or CorruBrackets according to spacing specification.
-
Insert DualPipe crossmembers through brackets and secure using provided splices for long runs.
-
Install end caps and collars at ends of runs; install DualClips beneath crossmembers if seam height threshold is met.
-
Tighten all setscrews and bolts to manufacturer’s torque specifications; inspect alignment and anchorage.
FAQs
Q: What pipe diameter does DualGard use?
A: DualGard uses 1-inch diameter aluminum pipes (DualPipe).
Q: Does DualGard work on both standing seam and corrugated roofs?
A: Yes. It uses Mini clamps on standing seam roofing and CorruBracket for corrugated or exposed fastened roofing with a deck below.
Q: When are DualClips needed?
A: DualClips are optional but recommended for seams that are 2″ or greater; they help reduce migration of snow and ice under the crossmembers.
Q: How long can a DualGard assembly be before thermal expansion becomes a concern?
A: Assemblies are typically limited to 100 feet; longer runs should be divided to allow for expansion.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
