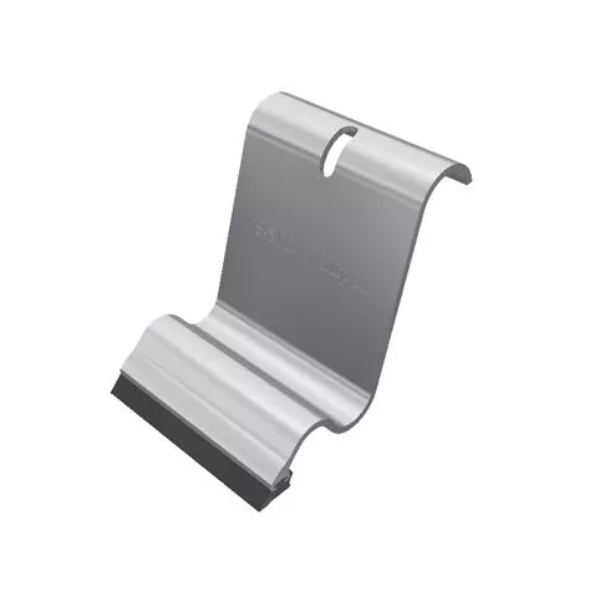

DualClip II: Small Case-35 / Large Case-105

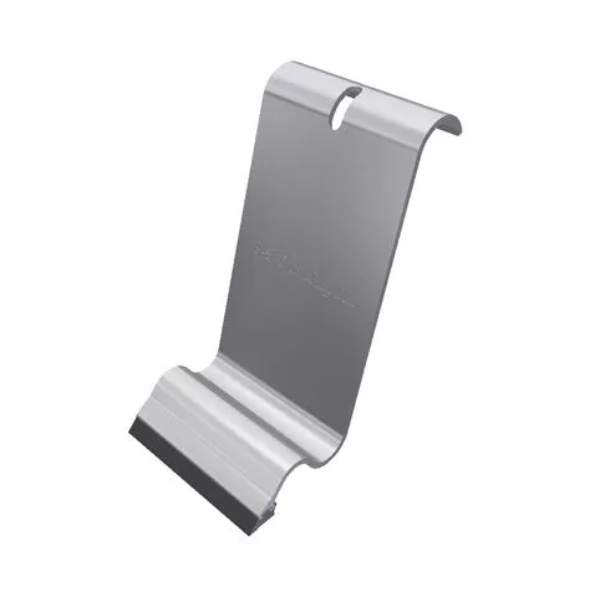

DualClip III: Small Case-25 / Large Case-75
Was: $4.44
Price: $4.44Sale: $4.44
Item #
Write a review!
Description
The S-5! DualClips are optional accessory clips for the DualGard Snow Retention System. They attach to the DualPipe crossmembers to help prevent snow and ice from migrating under the snow guard pipes. There are two sizes: DualClip II for smaller seam heights and DualClip III for taller seams. Both use a rubber foot for panel protection.
Key Features:
• Two sizes available: DualClip II and DualClip III
• Aluminum body with soft rubber foot to protect roof panel finish
• Prevent ice & snow migration under DualGard snow bars
• DualClip II fits seam heights ~1″ to 1-1/2″; DualClip III fits ~1-3/4″ to 3-1/4″
• Easy to install either during DualGard Pipe assembly or afterwards
Specifications
• Material: High-strength aluminum with molded rubber foot
• Finish: Mill finish aluminum
• Seam compatibility: DualClip II ~1" to 1-1/2"; DualClip III ~1-3/4" to 3-1/4"
• Dimensions: Approximately 2.5" height (DualClip II), 3.5" height (DualClip III)
• Weight: Approx. 0.35 lb each
• Included: One DualClip unit (choose II or III size)
• Compatibility: Designed exclusively for S-5! DualGard Pipe Snow Retention System
How To
- Install the DualGard pipes and brackets according to the system layout.
-
Select DualClip II or III based on panel seam height.
-
Position the DualClip against the backside of the DualPipe with the rubber foot seated on the roof panel.
-
Fasten the clip securely using the provided screw or appropriate hardware.
-
Use one DualClip per panel seam; for wider seams, consider two per panel.
-
Verify the rubber foot is flush against the roof without damaging the finish.
FAQs
Q: What is the difference between DualClip II and DualClip III?
A: DualClip II is made for seam heights of about 1" to 1-1/2", while DualClip III fits taller seams of about 1-3/4" to 3-1/4".
Q: Are DualClips required for every installation?
A: No, they are optional but recommended for taller seam applications to reduce snow and ice migration under the bars.
Q: Can DualClips be installed after the DualGard system is already in place?
A: Yes, they can be added at the time of installation or retrofitted later if needed.
Q: Will DualClips damage the roof panel surface?
A: No, the integrated rubber foot is designed to protect the panel finish from abrasion.
