Small Case-70 / Large Case-210
Price: $4.36
Item #S-5-VERSABRACKET-67
Write a review!
Description

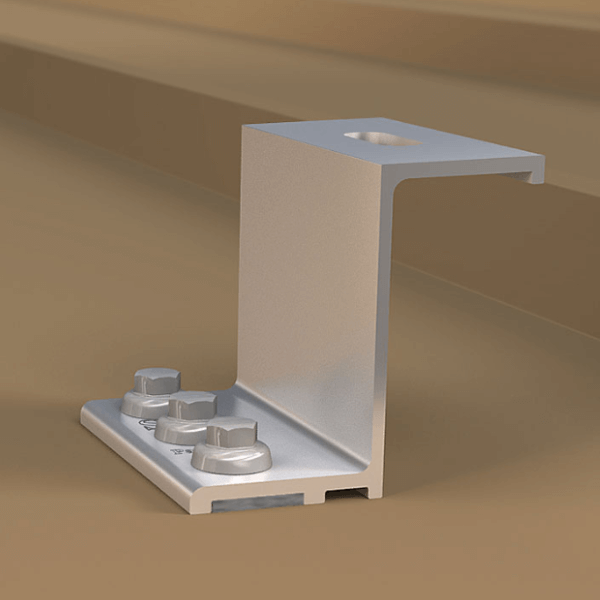

The S-5! VersaBracket-67 (VB-67) is a bottom-fixed bracket engineered for use on exposed-fastened and trapezoidal roof profiles. It features a 2.65″ (67 mm) horizontal mounting face and a factory-applied butyl sealant base with a “triple seal” design to ensure long-term water tightness without field sealants. The mounting face has a 1″ (25 mm) slot for 8 mm bolt attachments for accessories. The bracket mounts in the flat of the metal roofing panel, attaching through pre-punched holes into supporting structure (deck, purlins, etc.). VB-67 is well suited for solar PV, snow retention with ColorGard & VersaClip, and other rooftop utilities.
Key Features:
• 2.65″ (67 mm) horizontal mounting face for exposed-fastened/trapezoidal roof profiles
• Factory-applied, non-curing butyl sealant with triple-seal design for watertight performance
• 1″ (25 mm) top slot for 8 mm bolted accessories
• Bracket mounts in the flat of the panel into the structural substrate; supports use with ColorGard, VersaClip, solar mounts, etc.
• Compatible with common metal roof materials; fasteners sold separately
Specifications
• Material: 6061-T6 aluminum body; factory-applied butyl sealant base
• Horizontal mounting face: 2.65″ (67 mm)
• Top slot: 1″ (25 mm) slot for 8 mm bolt
• Mounting holes: Pre-punched holes for attachment into deck or purlins (fasteners not included)
• Roof compatibility: Exposed-fastened, trapezoidal, and screw-down metal panels
• Includes: Bracket body with sealant base; pre-punched holes; accessory slot
How To
- Verify roof type is exposed-fastened/trapezoidal and mark bracket placement over structural support.
-
Clean the flat surface area of the panel to ensure a good seal.
-
Remove release paper from the bracket’s butyl sealant base.
-
Position the VersaBracket-67 in the panel flat, aligning the pre-punched holes.
-
Install appropriate fasteners through the holes into the structural deck or purlins.
-
Attach accessories to the 1″ top slot using an 8 mm bolt; inspect after installation.
FAQs
Q: What size is the VersaBracket-67 mounting face?
A: The face measures 2.65″ (67 mm) across.
Q: Does VersaBracket-67 come with fasteners?
A: No. Fasteners for mounting into deck or purlins are not included.
Q: How does VersaBracket-67 ensure watertightness?
A: It uses factory-applied butyl sealant, a built-in reservoir, and a triple-seal design.
Q: Can VersaBracket-67 be used with snow retention systems?
A: Yes. It is compatible with ColorGard systems using VersaClip, as well as solar and other accessories.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
