OMG, #98700 Quick Connects (6 pk)

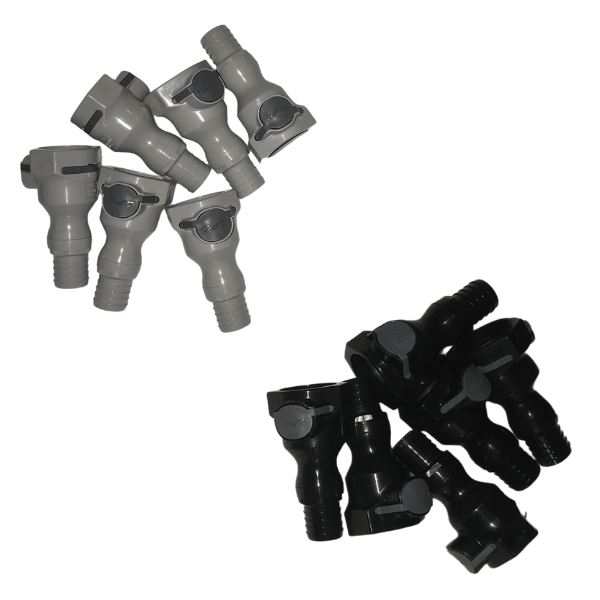

The OMG 98700 Quick Connects (6-pack) are replacement/upgrade couplers for fluid adhesive systems like PaceCart, Adco Cart, or roof sprayers. They feature universal 38 mm threaded or snap-in necks, automatic flush valves to reduce spills, and durable materials for long-term reliability. Sold in a 6-pack to facilitate multiple machines or replacements, these quick connects help improve productivity and reduce setup time.

Key Features

• universal 38 mm necks (threaded or snap-in) for broad compatibility
• automatic flush feature to minimize wasted material and reduce mess
• molded polypropylene body with stainless steel valve spring for durability
• ¾-inch ID tubing size helps maintain proper flow rates
• meets NSF/ANSI standard, operates safely from vacuum up to 15 psi

• item number: OBCONKIT (98700, 6-pack)
• color options: black or gray to differentiate between sides (Part 1 / Part 2)
• material: molded polypropylene body; stainless steel valve spring; FDA/EPDM seal option
• neck size: 38 mm, threaded or snap-in fit
• internal diameter: ¾-inch ID tubing size
• height: 1.73 inches
• length: 3.21 inches
• weight per connector: 0.068 lbs (approx)
• pressure range: vacuum (about 20 in Hg) up to 15 psi (≈ 1 bar)
• temperature range: 32°F to 160°F

• Identify which side (Part 1 or Part 2) each quick connect is for (using color if applicable).
• Remove the gravity hose or flow-pipe fitting from the PaceCart, Adco Cart, or similar.
• Attach the quick connect by either threading or snapping it to the 38 mm neck until secure.
• Ensure the automatic flush port/valve is working to release any trapped material before main use.
• Connect hoses/lines and restore flow; check for leaks and ensure proper seal.
• After use, disconnect, wipe clean, and inspect the seal for wear; replace individual connectors if necessary.

Q: What is the purpose of the automatic flush in these quick connects?
A: It helps clear out any residual adhesive or material to reduce spillage and buildup when connecting/disconnecting.

Q: Do these connectors work with all PaceCart models?
A: Yes, as long as the system has 38 mm threaded or snap-in fit necks and uses compatible ¾-in ID hoses.

Q: Why are there black and gray color options?
A: To differentiate between Part 1 and Part 2 sides (for two-component adhesive systems) to prevent cross-connection.

Q: What range of pressure and temperature can these connectors handle?
A: Rated from vacuum up to 15 psi, with temperature operation between 32°F and 160°F.
