OMG SpeedTite® Aluminum RetroDrain, 3"-6"

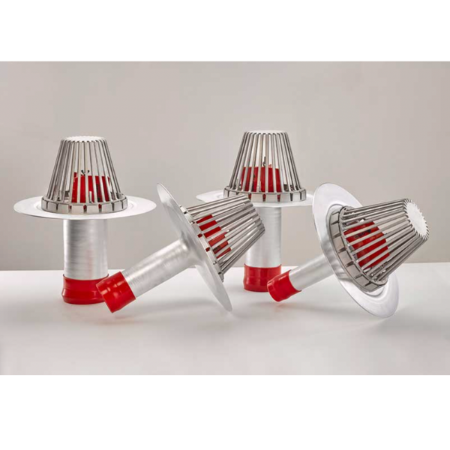

OMG SpeedTite RetroDrain models SPT3A, SPT4A, SPT5A, SPT6A are retrofit roof drains designed to improve drainage performance by reducing vortexing and accelerating water removal. They install from the roof surface into existing drain leaders, featuring a mechanical seal that provides a watertight connection in seconds. With sizes from 3 to 6 inches and an extra-large flange, they accommodate most field conditions and work with many roof cover types.

Key Features

• vortex breaker reduces slow draining and eliminates “chugging”
• mechanical seal that creates watertight connection quickly
• available in 3-, 4-, 5-, and 6-inch diameters
• large flange (17-inch) for positive attachment of roof flashing membrane
• cast aluminum strainer dome and clamp ring for durability

Item Numbers:
• SPT3A (3-inch)
• SPT4A (4-inch)
• SPT5A (5-inch)
• SPT6A (6-inch)

Flow Rates (volumetric, gallons per minute) at water head levels:
• 3-inch: 267 gpm at 4-in head; 346 at 5-in; 347 at 6-in
• 4-inch: 288 gpm at 4-in head; 469 at 5-in; 560 at 6-in
• 5-inch: 326 gpm at 4-in head; 485 at 5-in; 563 at 6-in
• 6-inch: 388 gpm at 4-in head; 514 at 5-in; 618 at 6-in

Physical Data:
• Drain Body: 11 gauge (.125-inch / 3.18 mm) spun aluminum
• Mechanical Seal: OMG SpeedTite mechanical seal
• Flange: 17-inch (432 mm) diameter with sump area
• Strainer Dome: Cast aluminum
• Stem: 10-inch (254 mm) length, field-cuttable if needed
• Clamp Ring: Cast aluminum (not included in TPO- or PVC-coated flange versions)

Approvals & Standards:
• ASME 112.6.4 certification via QAI Laboratories
• CSA-B79-08 standard certified
• Meets IPC and UPC codes
• Exceeds ANSI/SPRI RD-1 standard (seal holds 10-ft water column for 24 hours)

• Remove existing strainer dome, clamping ring, and any drain components until the OMG SpeedTite flange can sit flush on roofing membrane.
• Clean and smooth the interior of the existing drain leader; remove debris and any obstructions.
• Insert the SpeedTite stem into the existing leader until flange lies flush. If necessary, cut stem to fit (maintain minimum clearance per spec).
• Tighten the wing nut on the vortex breaker until hand tight, ensuring there is no vertical movement.
• Fasten the flange to roof deck/nailer using at least three evenly spaced pan-head fasteners; ensure membrane flashing covers fasteners.
• If using a clamp ring version, install clamp ring over studs, use lock washers / nuts; install strainer dome. If using a coated flange version, hot-air weld membrane as required and secure strainer dome.

Q: What sizes are available for this SpeedTite line?
A: Sizes include 3-inch (SPT3A), 4-inch (SPT4A), 5-inch (SPT5A), and 6-inch (SPT6A).

Q: What is the mechanical seal used?
A: The SpeedTite mechanical seal is designed to create a watertight connection between drain stem and leader, and can be made watertight quickly.

Q: What certifications do these drains have?
A: Certified to ASME 112.6.4 and CSA-B79-08; they meet IPC and UPC codes; they exceed the ANSI/SPRI RD-1 standard.

Q: Can the stem be shortened in the field?
A: Yes, the 10-inch stem can be cut on site if needed to accommodate existing drain leaders, keeping minimum clearance per manufacturer’s instructions.
