New!
*Free Freight Terms Do Not Apply*
Price: CALL
Item #TRA-CC07029
Write a review!
Description

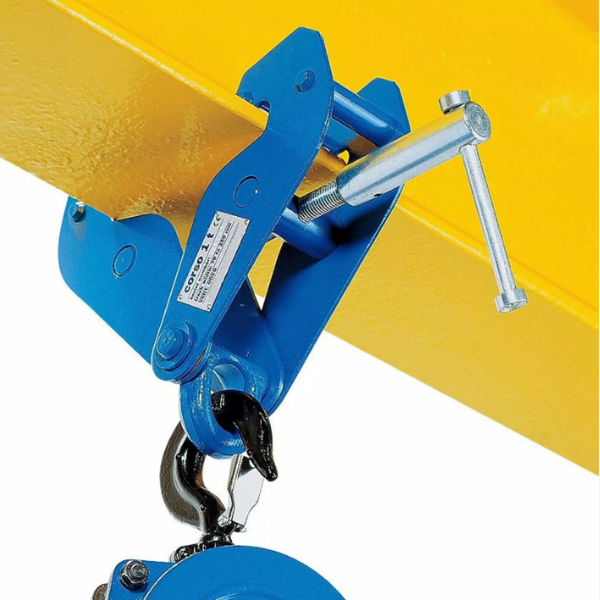

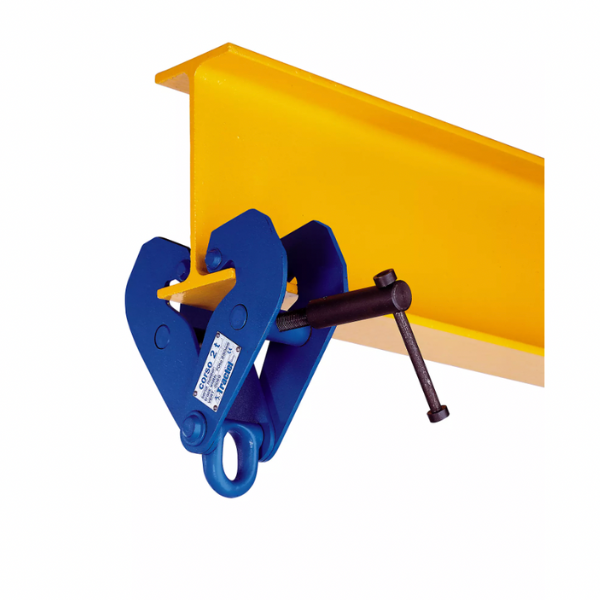

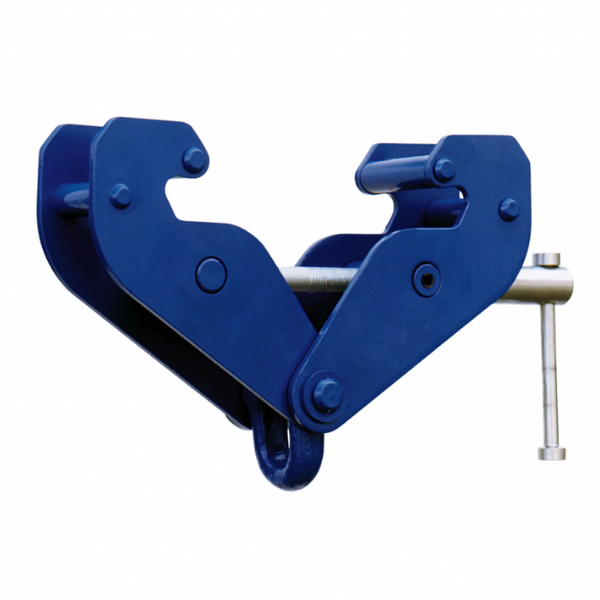

The Tractel Corso LT-3B Beam Clamp is an adjustable claw-type beam clamp designed to provide a secure anchor point on steel I-beams for lifting and hoisting applications. It is suitable for use with manual and electric hoists, anchor points, or lifting clamps where reliable vertical lift support is required. The clamp features easy width adjustment and a pivoting shackle eye for attachment, with a locking screw that prevents spindle rotation during operation. Its sturdy alloy steel construction delivers dependable performance in material handling and rigging tasks.
Key features:
• Adjustable beam clamp creates reliable fixed girder anchor points
• Designed for a 3 ton working load limit for moderate load handling
• Adjustable jaw range adapts to varied beam flange widths
• Pivoting shackle eye for easy connection of hoists and rigging devices
Specifications
• SKU: CC07029
• Product type: Corso beam clamp
• Model: LT-3B
• Working load limit (WLL): 3 ton (6,000 lb)
• Operation: vertical lift
• Safe working load: 6,000 lb
• Jaw capacity: 3-45/64 in to 13-1/4 in
• Locking type: locking screw
• Jaw material: steel
• Lifting point: pivoting shackle eye
• Standards: ANSI B30.20
FAQs
Q: What is this beam clamp used for?
A: This beam clamp provides a secure anchor point on steel I-beams to support vertical lifting with manual or powered hoists.
Q: How does the clamp attach to the beam?
A: It adjusts to beam flange width and is secured with a locking screw that prevents spindle rotation.
Q: What does pivoting shackle eye mean?
A: The pivoting shackle eye is a rotating lifting point that allows flexible rigging orientation.
Q: What standard does this beam clamp meet?
A: It is built to comply with ANSI B30.20 standards for beam clamps and lifting accessories.
