New!
Price: CALL
Item #TRA-50248
Write a review!
Description

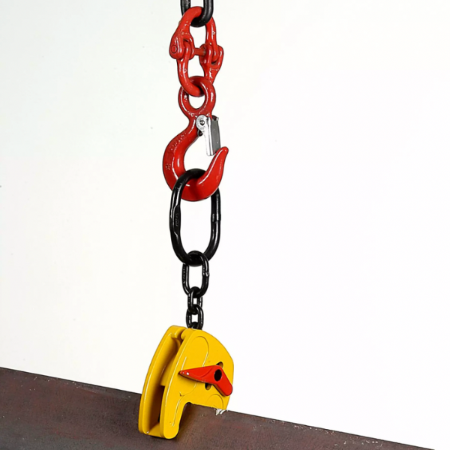

The Tractel Topal KS1 0-20 Multiposition Plate Clamp is designed for lifting, positioning, and revolving steel plates and fabricated assemblies using a single clamp. It features a stainless steel spring mechanism that secures the load without presetting and allows flexible use across a wide range of plate thicknesses. The clamp supports both horizontal and vertical lifting and includes a chain sling for easy load manipulation. A hot epoxy coating and hardened jaws provide durability for demanding material handling environments.
Key features:
• Multiposition clamp for lifting and revolving loads with one clamp
• Stainless steel spring mechanism secures the load without presetting
• Chain sling allows easy manipulation and positioning
• Designed for both horizontal and vertical lifting applications
Specifications
• SKU: 50248
• Product type: Topal multiposition plate clamp
• Working load limit range: 3/4 ton (1,650 lb) to 3 ton (6,600 lb)
• Rated capacity: 1 ton (2,200 lb)
• Jaw opening range: 0 to 3/4 in
• Weight: 7.7 lb
• Lifting method: horizontal and vertical
• Load handling: lifting and revolving with one clamp
• Locking mechanism: stainless steel spring mechanism
• Clamping range: fully usable without presetting
• Suspension: large oval lifting ring
• Sling: chain sling included for positioning
• Release type: manual release
• Jaw marking: one-sided mark
• Surface coating: hot epoxy coating
• Surface hardness rating: up to 300 HB (Brinell hardness)
FAQs
Q: What types of lifting operations is this clamp designed for?
A: It is designed for lifting, positioning, and revolving steel plates and fabricated assemblies in horizontal and vertical orientations.
Q: How does the clamp secure the load without presetting?
A: A stainless steel spring mechanism automatically secures the clamp to the load during lifting.
Q: Can this clamp be used to rotate or revolve a load?
A: Yes, it is designed to lift and revolve loads using a single clamp.
Q: What helps with positioning the load during lifting?
A: The included chain sling allows easier manipulation and positioning of the load.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
![]()
