New!
*Free Freight Terms Do Not Apply*
Price: CALL
Item #TRA-19690
Write a review!
Description

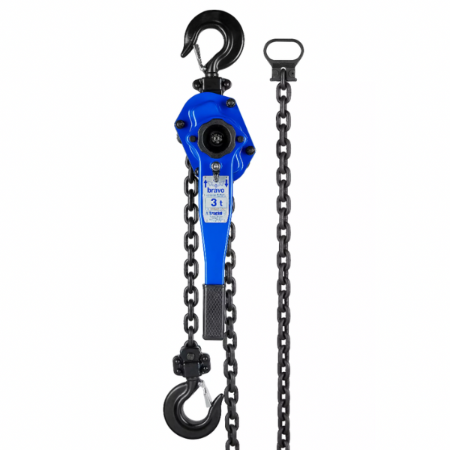

The Tractel Bravo Lever Chain Hoist model 19690 is a manual hoist engineered for lifting, pulling, positioning, and tensioning heavy loads in industrial, construction, and workshop settings. It features a 3 ton (6,000 lb) working load limit with a corrosion-resistant chain and a 10 ft lift height to handle substantial vertical travel. The lever-operated design incorporates a free-wheel safety device and 360° swivel hooks with overload indicators for flexible rigging and increased safety. It delivers controlled, manual load movement without electrical power.
Key features:
• Manual lever chain hoist for lifting, pulling, positioning, and tensioning tasks
• 3 ton (6,000 lb) working load limit for heavy-duty applications
• Corrosion-resistant 10 ft lift chain included
• 360° swivel hooks with overload opening indicators and free-wheel safety device
Specifications
• SKU: 19690
• Product type: Bravo Lever Chain Hoist
• Working load limit: 3 ton (6,000 lb)
• Lift chain length: 10 ft
• Load chain size: 10 × 30 mm
• Number of falls: 1
• Effort on lever at capacity: 73 lb / 33 kg
• Hook type: 360° swivel hook with overload opening indicator
• Construction material: alloy steel
• Brake type: automatic brake with double ratchet
• Wind-through chain system for fast hook positioning
• Operating temperature range: –40°F to 140°F (–40°C to 60°C)
• Standards: Meets or exceeds ANSI/ASME B30.21C for manually lever-operated hoists
FAQs
Q: What environments is this hoist suited for?
A: It is suited for industrial, construction, and workshop environments that require manual lifting and pulling of heavy loads.
Q: Does this hoist include a safety braking mechanism?
A: Yes, it includes an automatic brake with a double ratchet for controlled load handling.
Q: What kind of hooks are used on this hoist?
A: It uses 360° swivel hooks with overload opening indicators for flexible rigging positions.
Q: How is the chain positioned into place for lifting?
A: It uses a wind-through chain system for fast hook positioning.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
![]()
