• Tractel - corso® beam clamp LT 2B - TRA-CC07019
  • Tractel - corso® beam clamp LT 2B - TRA-CC07019
  • Tractel - corso® beam clamp LT 2B - TRA-CC07019
  • Tractel - corso® beam clamp LT 2B - TRA-CC07019
New!

*Free Freight Terms Do Not Apply*

Best Price Guaranteed
Price: CALL
    Item #TRA-CC07019
    Write a review!

    Description

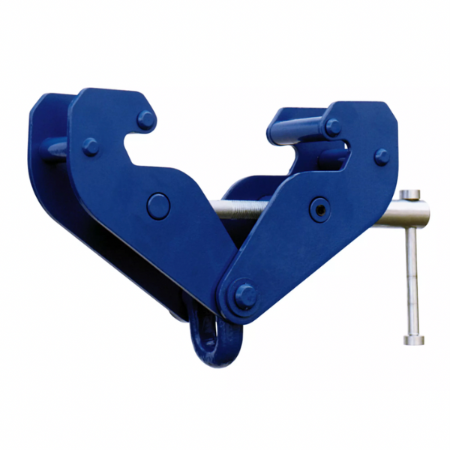

    The Tractel Corso LT-2B Beam Clamp is a simple claw-type clamp designed to create fixed girder anchor points on steel beams. It is used with manual and electric hoists, lifting clamps, or as an anchor point for vertical lifting applications. The clamp features easy width adjustment to match the steel beam size and installs quickly using a locking screw mechanism. Its compact, rugged steel alloy construction provides high stability when properly fixed in place.

    Key features:

    • Claw-type beam clamp for fixed girder anchor points
    • Easy and fast adjustment on steel I-beams
    • Handle and spindle design allow quick width changes
    • Compatible with Tractel lifting and hoisting devices

    Specifications

    • Product type: Corso beam clamp
    • Model range capacity: 1 ton (2,000 lb) to 10 ton (20,000 lb)
    • Model capacity: 2 ton (4,000 lb)
    • Safe working load: 4,000 lb
    • Operation: vertical lift
    • Opening flange range (model range): 3 in to 12.6 in
    • Jaw capacity (LT-2B): 3 in to 9-21/64 in
    • Range of models: five
    • Locking type: locking screw
    • Jaw material: steel
    • Body material: steel alloy
    • Lifting point: pivoting shackle eye
    • Integrated attachment ring
    • Spindle bar locking: grub screw prevents rotation
    • Installation: fast installation
    • Adjustment: easy width adjustment to beam size
    • Stability: high stability when fixed correctly
    • Standards: ANSI B30.20
    • Design characteristics: compact and rugged

    FAQs

    Q: What is this beam clamp used for?
    A: It is used to create fixed anchor points on steel beams for manual or electric hoists, lifting clamps, and vertical lifting applications.

    Q: How is the clamp secured to the beam?
    A: The clamp is adjusted to the beam width and secured using a locking screw that prevents spindle rotation.

    Q: Can this clamp be used with Tractel lifting devices?
    A: Yes, it is compatible with Tractel lifting and hoisting equipment.

    Q: What type of lifting orientation is supported?
    A: The clamp is designed for vertical lifting applications.
