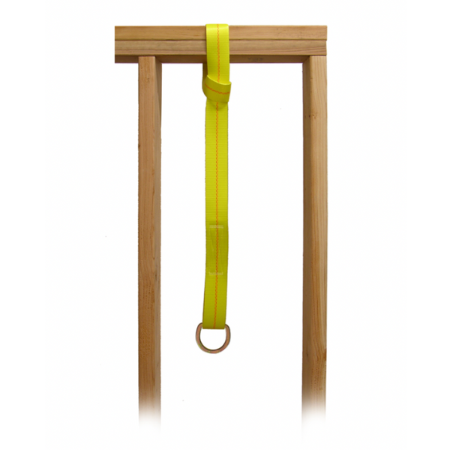

Super Anchor Safety Value Single D-Ring Tie-Off Straps

The Super Anchor 605x-D series Value Tie-Off Straps are temporary anchorage connectors designed for quick installation during construction. Each strap cinches around structural members such as beams, headers, or rafters and provides a secure D-ring connection point. With 2-inch webbing rated at 5,000 lb and available in lengths of 48, 60, and 72 inches, these straps deliver OSHA and ANSI compliant fall protection for a single worker.

Features

• Temporary cinch-style tie-off strap with D-ring end
• 2-inch webbing, 5,000 lb rated service strength
• Available in multiple lengths for varied applications
• Lightweight, portable, and reusable during construction
• Complies with OSHA and ANSI standards

• Brand / Model: Super Anchor Safety Value Single D-Ring Tie-Off Strap
• Product Type: Temporary anchorage connector (pass-through tie-off strap, single D-ring)
• Part Numbers: Vary by length/variant (verify on label)
• Weight: ~0.6–1.3 lb depending on length (approx.; verify on label)
• Dimensions (Overall Lengths): Common options 36 in (3 ft), 48 in (4 ft), 72 in (6 ft); other lengths may be available
• Dimensions (Web Width): ~1.75 in (44 mm) typical
• D-Ring Opening (ID): ~2.0 in (51 mm) typical
• Material: High-tenacity polyester webbing; polyester stitching; forged alloy-steel D-ring (zinc-plated)
• Configuration: Pass web loop around compatible structure, feed through itself, and clip to the single D-ring
• Minimum Breaking Strength: 5,000 lb (22.2 kN) anchor connector rating (typical)
• User Capacity (System): 130–310 lb including tools/clothing when used as part of a compliant PFAS (verify on label)
• Edge / Abrasion Guidance: Protect from sharp edges and hot/chemical surfaces; use edge protection where required
• Compliance: Designed to meet OSHA 1910/1926; conforms to ANSI Z359.18 (anchorage connectors) when used as directed (verify edition)
• Inspection / Indicators: Check webbing, stitching, D-ring, and labels before each use; remove from service after any fall event or if damage/illegible labels are found
• Environmental Resistance: Webbing is abrasion/UV resistant; hardware is corrosion-resistant plated steel
• Compatibility: Works with ANSI-rated snaphooks/carabiners and approved harness D-rings/connecting devices
• Included: Tie-off strap with single D-ring (connectors and anchor straps sold separately)

• Select the correct strap length for the structural member (48", 60", or 72").
• Wrap the strap around the member ensuring full surface contact.
• Cinch the strap by pulling the webbing through the loop or D-ring.
• Connect lanyard, SRL, or lifeline to the D-ring connection point.
• After use, inspect the strap for wear or damage and remove it from service if compromised.

Q: What lengths are available in the 605x-D series?
A: 48" (6051-D), 60" (6052-D), and 72" (6053-D).

Q: What is the rated strength of these straps?
A: 5,000 lb minimum service strength, with 3,600 lb proof load.

Q: What is the maximum user weight capacity?
A: 340 lb including tools and equipment.

Q: Are these straps reusable?
A: Yes, they are reusable temporary anchors, but must be inspected before each use.

Q: Can they be left installed permanently?
A: No, they are designed for temporary anchorage and should be removed after use.
