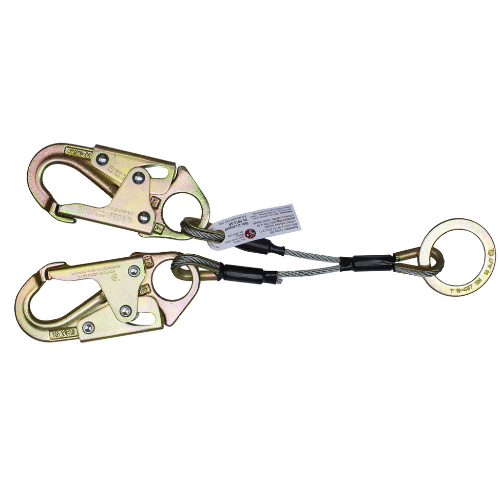

Super Anchor Safety 6515-SH - 2-D Lanyard Double Locking Steel Snaphooks

After many requests, Super Anchor developed a twin lanyard that allows workers to use the side D-rings on their harnesses for work positioning. This lanyard is specified for use as a Fall Restraint or Work Positioning device only. Do not use for Fall Arrest, vertical suspension, window-washing or rescue. We offer 6 different models all made with 3/16” wire rope, steel thimbles and connector “O” ring. All units are hand-made in our factory in Monroe WA using state of the art swaging equipment. Accepts/Supplied with ANSI 3,600-pound gate strength connectors.

Features:

• 7x19x3/16” Wire Rope with Steel Thimbles
• 4,000-Pound Tensile Strength
• Use for Work Positioning or Fall Restraint
• Super Compact and Lightweight
• Connects to Full Body Harnesses with Side D-Rings
• Part No. 6515-C and 6515-SH are Specified for Rescue with our Harness Part No. FD-6071 Front D-Ring Harness
• 5 Different Models Available

• Device: shock-absorbing web lanyard for single-user fall arrest (double-locking steel snaphooks)
• Model: 6515-SH — “2-D” Lanyard with Double-Locking Steel Snaphooks
• Configuration: single-leg lanyard with energy absorber; one snaphook at harness end and one at anchorage end (double-action, self-locking)
• Length: 6 ft (1.8 m) nominal overall
• Webbing Width: 1.75 in (44 mm) primary web
• Energy Absorber Pack Size: approx. 7–9 in long × 2.5–3.5 in wide × ~1.5 in thick
• Connector Opening: ~3/4 in (19 mm) gate opening on each steel snaphook
• Materials (Webbing): high-tenacity polyester, abrasion/UV resistant; tear-web energy absorber
• Materials (Hardware): forged alloy steel snaphooks and keepers, zinc-plated (≥3,600 lb gate)
• Stitching: high-strength bar-tack with contrasting inspection thread
• Weight: ~2.2–3.0 lb per lanyard (size/hardware dependent)
• Minimum Tensile Strength (System): ≥5,000 lb (22 kN)
• Maximum Arresting Force: ≤900 lb when used as directed with the integral energy absorber
• User Capacity: 1 person up to 310 lb (140 kg) including tools/equipment (as part of a compliant PFAS)
• Dimensions (Packed/Coiled): approx. 10–12 in long × 4–5 in wide for storage
• Temperature Range: about −30 °F to 120 °F (typical jobsite conditions)
• Compliance: OSHA 1910.140 / 1926.502; ANSI Z359.13 (energy-absorbing lanyards) & Z359.12 (connectors) when used as directed
• Inspection/Retirement: inspect before each use; remove from service after any fall or if cuts, glazing, chemical/UV damage, broken stitches, corrosion/deformation, failed labels, or opened tear-web are observed

• Q: What does “2-D” mean?
  A: Two double-locking steel snaphooks—one at the harness end, one at the anchor end.
• Q: What’s the user capacity and length?
  A: Single user up to 310 lb (with tools); 6 ft overall.
• Q: What anchors/connectors are required?
  A: Clip to an ANSI dorsal D-ring; anchor must be ≥5,000 lb. Snaphook gate rating is 3,600 lb.
• Q: When do I remove it from service?
  A: After any fall or if you see damage (opened tear-web, cuts, broken stitches, corrosion, deformation, or missing labels).
