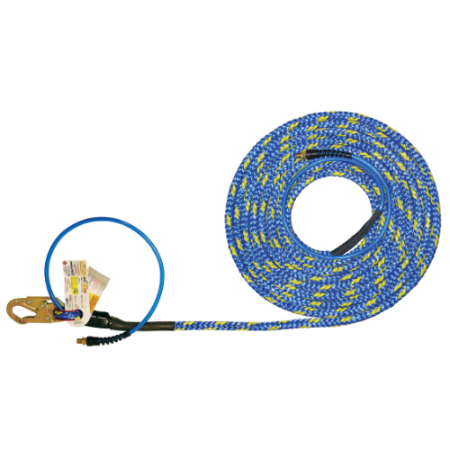

Super Anchor Safety 4073 - 50' X-Line w/ Snaphook

Workers on the Roof Cannot Use Their Air Guns Without Being Tied-Off to Their Vertical MAX X-Line

The X-Line is a personal fall arrest lifeline with a patented, integral 1/4" air hose inside SAS's 12-Strand HD Lifeline. The result is a completely integrated system for roofers that reduces rope management issues and tripping hazards. Less rope management means faster roofing, too. Ideal for construction trades using air guns. This is a safety tool for the professional roofer that is looking for the ultimate lifeline system. Can be used in "reverse" so that no extra lifeline is ever trailing behind you. USA models are fitted with English/Spanish instructions and labels. Supplied in a 5 gallon plastic bucket and certified for use with 2 different types of rope grabs.

Features

• 12-Strand Poly-Dac lifeline with aluminum swage
• 1/4" reinforced polyester airline with brass reusable fittings
• 6' and 4' air-line leads
• 3,600-pound gate strength connectors
• Individually serial numbered
• Instruction and Inspection Labels included
• Use with Prussic Rope Grabs or ADP Rope Grabs

• Device: 50 ft vertical lifeline (12-strand) with locking snaphook for single-user fall protection
• Model: 4073 “X-Line”
• Length: 50 ft (15.2 m)
• Diameter: 5/8 in (≈16 mm)
• Material (Rope): 12-strand polyolefin copolymer (low water absorption; abrasion/UV resistant)
• Termination: Aluminum swage (≥5,000 lb) with thimble eye and attached locking snaphook
• Connector: ANSI-compliant steel locking snaphook at rope end
• Minimum Tensile Strength (Rope): 11,600 lb
• Elongation: ~4% at 8 kN
• Weight: ~4.8–6.0 lb (rope plus end hardware)
• User Capacity: Single user up to 340 lb including tools/equipment (as part of a compliant PFAS)
• Rope-Grab Compatibility: 5/8 in mechanical rope grabs (e.g., dual-cam types), ADP-style grabs for 5/8 in, or appropriately sized Prusik
• Temperature Range: ≈ −30 °F to 120 °F (typical jobsite conditions)
• Construction Features: Torque-balanced 12-strand lay to reduce hockling/twisting; firm hand for smooth grab travel
• Compliance: OSHA 1926.502; ANSI Z359.1; CSA Z259.2.5-2012 (when used within a compliant system)
• Inspection/Retirement: Inspect before each use; retire after any fall event or if cuts, glazing, chemical/UV damage, swollen or stiff fibers, excessive abrasion, or distorted end hardware are observed

• Q: Which rope grabs are compatible with this lifeline?
  A: 5/8 in mechanical rope grabs designed for 12-strand rope, ADP-style grabs for 5/8 in, or an appropriately sized Prusik.
• Q: How many users can tie off and what’s the capacity?
  A: Single user only, up to 340 lb including tools and equipment, as part of a complete PFAS.
• Q: Can I shorten the rope or swap the snaphook myself?
  A: No. Do not cut the rope or re-terminate hardware. Use the factory aluminum swage/thimble and supplied ANSI-compliant snaphook; replace the assembly if damaged.
• Q: When should I retire the rope and how do I care for it?
  A: Remove from service after any fall or if you see cuts, glazing, chemical/UV damage, stiff/swollen strands, heavy abrasion, or distorted hardware. Clean with mild soap and water, air-dry away from heat, and store dry out of sunlight/chemicals.
