Price: $27.00
Item #SAS-2816
Write a review!
Description

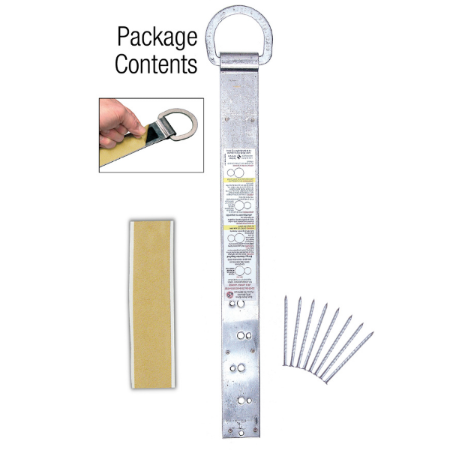

The RS-20 anchor is a permanent roof anchor designed specifically for tile, slate, wood and synthetic roofing materials. The 20” long strap allows you to adjust the reveal of the D-ring for your specific roofing material and the unique design of the anchor also allows you to physically bend the D-ring portion of the anchor up and over the tile or slate so that it lays flat on the surface. This permanent, low profile anchor comes with stainless steel attachment hardware and comprehensive installation instructions.
Available with a “Dual Hole” option to accept larger diameter fasteners to give you more mounting options. We can supply you with special, high strength Head-Lok Fasteners up to 12” long for deeper substrate installation. Perfect for installing over SIPS panels. Also Available in 100% stainless steel option.
Features
- Made for Tile, Slate, Wood shake, Synthetic and Asphalt roofing
- Permanent low-profile design is aesthetically pleasing
- Use on Wall or Roof Surfaces
- Dual Hole Model use for SIPS panels
- Easy to Install and Includes all Fasteners
- Rated for 5,000 OSHA Fall Arrest
Specifications
- Device - Single D-ring Permanent Roof Anchor
- Fall Protection Rating - Fall Arrest and Fall Restraint
- Structure Attachment (wood) - Wood Framed Structure
- Structure Attachment (steel) - 24 gauge minimum metal decking with SAS engineering
- Minimum Breaking - 5,000 pounds
- Minimum Tensile - 5,000 pounds
- Material (Strapping) - 20 gauge 430 Stainless Steel
- Material (D-rings) - Dacromet or yellow zinc plated steel
- Stamp Marks - Date of Manufacturer Year/Month
- Flashing - Butyl flashing for waterproofing 2 @ 4”
- Maximum User Weight - 340 including tools and equipment
- Hardware - 3-1/4” Stainless steel nails
- OSHA Standard - 1926:502 and 1910.66
- ANSI Standard - Z359.1-07 and A10.32-2012
- Canadian 3rd Party - Certified by L.Ordre des Ingenious du Quebec
FAQs
- Q: Where can I install it?
A: On wood framing or 24-ga minimum metal decking (with SAS engineering).
-
Q: How many users can tie off?
A: One user only, up to 340 lb including tools.
-
Q: What is the strength rating?
A: 5,000 lb minimum tensile/breaking strength.
-
Q: Does it include flashing?
A: Yes—Butyl flashing (2 @ 4") for waterproofing.
