Price: $7.25
Item #S-5-X-CLIP-II
Write a review!
Description

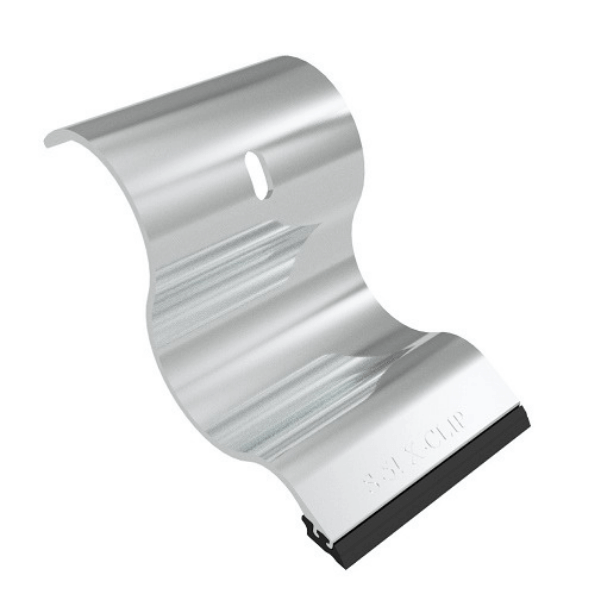

The S-5! X-Clip II is an optional accessory designed for the S-5! X-Gard 1.0 and 2.0 snow retention systems. This clip mounts to the NEX 2.0 pipe and rests on the roof panel flat, using its integrated rubber foot to reduce snow and ice migration under the rail. It is engineered for seam heights between 1″ and 1.75″, with added compatibility for some 2″ vertical seams. Made from durable aluminum with a protective rubber foot, the X-Clip II installs easily and includes a stainless steel self-drilling screw.
Key Features:
• Aluminum body with protective rubber foot
• Compatible with X-Gard 1.0 and 2.0 systems
• Fits seams 1″–1.75″; some 2″ vertical seams accepted
• Reduces snow and ice migration under the rail
• Includes stainless self-drilling screw for fastening
Product Sheet | Installation
Specifications
• Material: High-strength aluminum with EPDM rubber foot
• Finish: Mill finish aluminum with black rubber foot
• Seam height compatibility: 1″ to 1.75″ (25–44.5 mm); certain 2″ (51 mm) vertical seams
• Dimensions: 3″ × 6″ × 0.25″ (approximate footprint)
• Weight: ~6.24 oz each
• Application: Accessory for X-Gard 1.0 and 2.0 with NEX 2.0 pipe
• Includes: One X-Clip II with stainless self-drilling screw
How To
- Install the NEX 2.0 pipe crossmember between X-Gard brackets.
-
Position the X-Clip II so the back toe rests against the flat of the roof panel.
-
Swing the clip downward until the rubber foot makes full contact with the panel.
-
Secure the clip to the NEX 2.0 pipe using the provided screw.
-
For wide panels or tall seams, install two clips evenly spaced between seams.
-
Confirm the clip is fully seated and the rubber foot protects the panel finish.
FAQs
Q: What seam heights can the X-Clip II fit?
A: It fits seams from 1″ to 1.75″ and some 2″ vertical seams, but not 2″ horizontal seams.
Q: Does the X-Clip II come with hardware?
A: Yes. Each clip includes a stainless self-drilling screw for attachment.
Q: What prevents the clip from damaging the roof?
A: The integrated rubber foot provides a cushioned surface to protect the roof panel finish.
Q: Is the X-Clip II compatible with both X-Gard 1.0 and 2.0?
A: Yes. It is designed for use with both versions when installed to specification.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
