Small Case-60 / Large Case-180
Price: $9.89
Item #S-5-PV-KIT-2.0-MID-B
Write a review!
Description

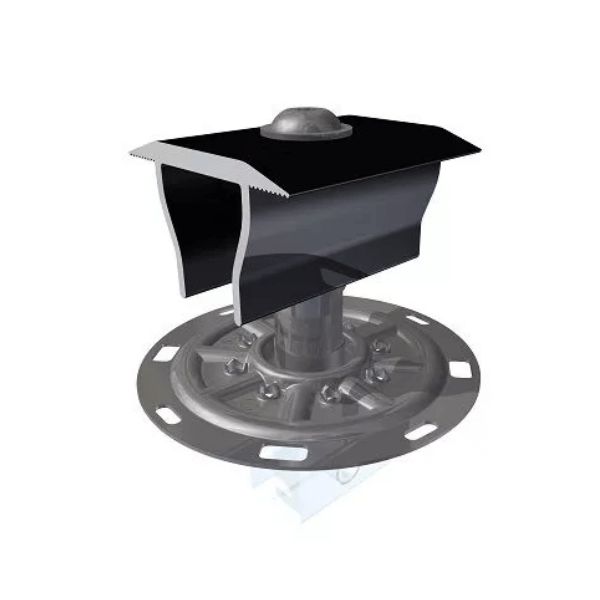

The S-5! PVKIT 2.0 MidGrab with Black Anodized Top Grab is designed for seamless, rail-less solar module installation on standing seam and exposed-fastened metal roofing systems. This MidGrab version sits between adjacent modules, creating module-to-module attachment without the need for rails. Its black anodized top grab enhances aesthetics by blending with dark-framed modules, while the multidirectional bonding disk ensures secure grounding and a reliable hold. Built from durable aluminum and stainless steel, the kit simplifies installation, reduces material costs, and preserves roof warranties by eliminating penetrations.
Key Features:
-
Black anodized top grab provides sleek appearance with dark-framed modules
-
MidGrab version allows module-to-module attachment within arrays
-
Fits framed modules with thicknesses from 30 mm to 46 mm
-
UL 2703-listed for both bonding and mounting compliance
-
Multidirectional bonding disk with integrated grounding teeth
-
Wire management tie-off points included in design
-
Rail-less system reduces weight and cost while simplifying installation
Specifications
- Material: 6000 series aluminum with black anodized top grab, stainless steel hardware
-
Module compatibility: Framed solar modules with 30–46 mm frame thickness
-
Finish: Black anodized top grab, mill finish hardware
-
Weight: ~0.24 lb per assembly
-
Warranty: 25 years
-
Installation torque: 120–130 in-lbs
-
Compatible S-5! Mini Clamps: S-5-E Mini, S-5-H Mini, S-5-H90 Mini, S-5-K Grip Mini, S-5-N 1.5 Mini, S-5-N Mini, S-5-Q Mini, S-5-R465 Mini, S-5-S Mini, S-5-T Mini, S-5-U Mini, S-5-V Mini, S-5-B Mini
-
Compatible Brackets: CorruBracket, CorruBracket 100T, CorruBracket 100T Mini, VersaBracket VB-47, VersaBracket VB-67
How To
- Confirm module frame thickness (30–46 mm) and roof profile.
-
Select the correct S-5! Mini Clamp or bracket for the installation.
-
Place the PVKIT MidGrab assembly between solar modules.
-
Align the black anodized top grab with module frames.
-
Tighten the hardware to 120–130 in-lbs torque.
-
Verify bonding and grounding through the integrated disk teeth.
-
Secure cables using the built-in wire management slots.
FAQs
Q: What makes the black anodized version different from the standard MidGrab?
A: The black anodized top grab provides a sleeker aesthetic appearance to better blend with solar modules.
Q: What module sizes does the MidGrab accommodate?
A: It supports framed solar modules with frame thickness between 30–46 mm.
Q: Can this product be used on exposed-fastened metal roofs?
A: Yes, when paired with compatible brackets such as CorruBracket or VersaBracket.
Q: Is the PVKIT 2.0 MidGrab UL certified?
A: Yes, it is UL 2703 listed for both grounding and module mounting.
