Small Case-30 / Large Case-120
Price: $5.90
Item #S-5-N
Write a review!
Quantity:
Overview
The new design features an innovative insert that ensures a superior fit whether placed on older profiles or new and wider nail strip profiles. The redesign of the clamps fits the popular 1″ nail strip metal roof manufacturers which include: Taylor Metals’ Easy Lock™, ASC Building Products’ Skyline Roofing®, McElroy Metals’ Meridian, New Tech Machinery’s FF100 and roofing types with similar profiles.
- Angled setscrews for easier installation – no special tools required

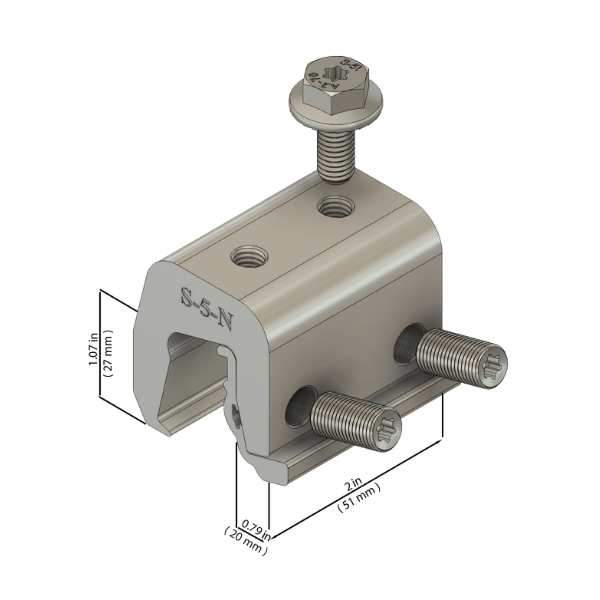

- Fits seam profiles having base rib dimension < .82″
- Structural aluminum (6061-T6) clamp body and 300 series SS fasteners offer superior corrosion resistance & strength
- Clamp insert to facilitate installation and fit

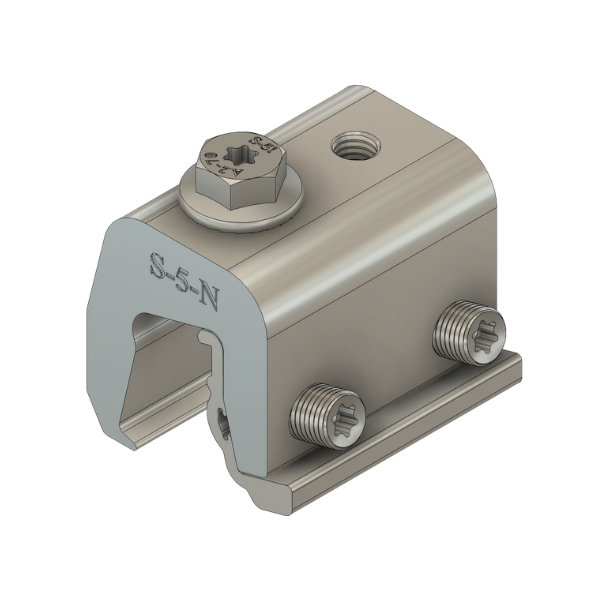

The S-5-N is designed for heavy duty applications such as snow retention. S-5-N can be used to mount ColorGard® to popular nail strip profiles, providing the strongest snow retention system on the market. An angled wall with a nose permits the S-5-N to engage the triangle type profiles during the installation process, and the S-5!® patented zero-penetration technology preserves the roof manufacturer's warranties. With S-5-N clamps, mounting heavy duty applications to nail strip profiles just got a whole lot simpler!
Installation

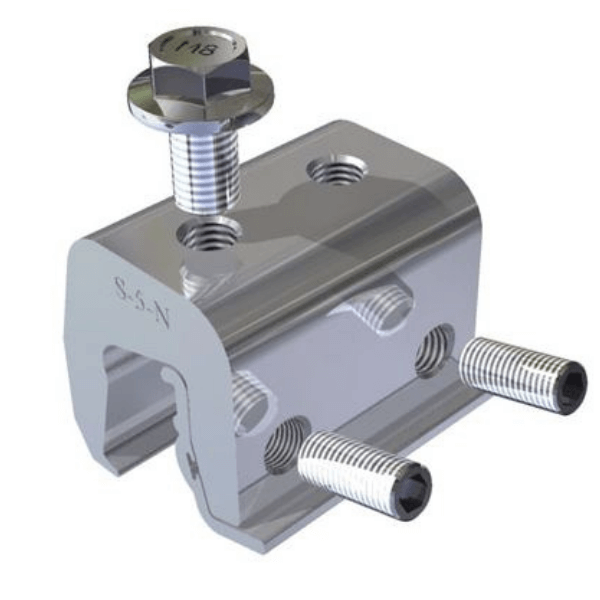

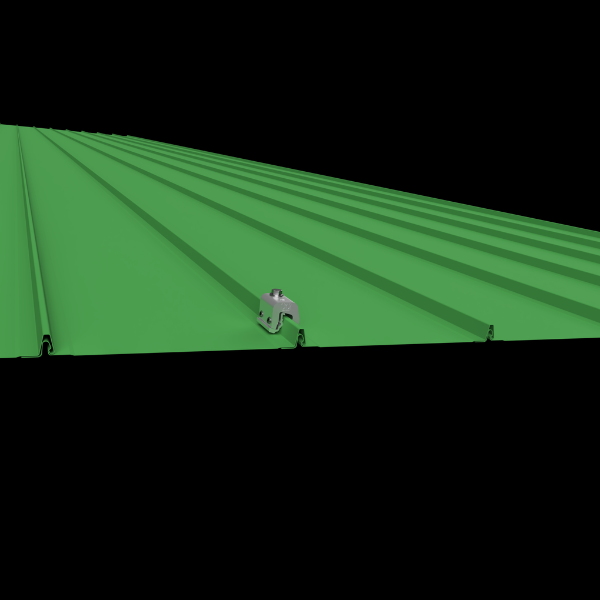

An angled wall with a nose permits the S-5-N to engage the triangle type profiles during the installation process—there is no longer a need to hold the clamp in place while setscrews are tensioned. The combination of these two features allows the clamp to sit straighter on the seam. Nail strip profiles just got a whole lot simpler
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
![]()
