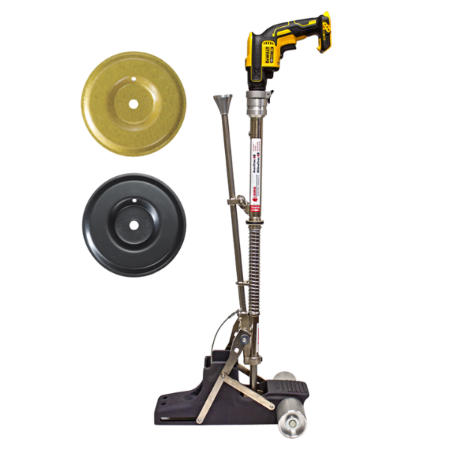

OMG RhinoTrac EZ Tool

RhinoTrac EZ is the newly redesigned stand-up tool for installing RhinoBond Plates on steel or wood roof decks. Contractors can simultaneously drop a RhinoBond plate and drive fasteners up to 8-inches long with RhinoTrac EZ to save time and manpower.

• New tool features include a 'can't miss' wide mouth feeder tube to help speed fastener loading, highly visible 'screw-in-chamber' indicators to help contractors avoid loading two fasteners at the same time, and easier to compress plate shuffle links to minimize fatigue.
• The depth adjustment ring eliminates fastener over-and under-driving while providing consistent vertical alignment to ensure maximum thread engagement and pullout performance.
• RhinoTrac EZ can help increase installation productivity by up to 50%.
• Holds a full stack of 100 RhinoBond Plates to reduce reloading time.
• For all-day comfort, the plate shuttle link mechanism has been redesigned to operate with less force which can help improve productivity rates since operators are expending less energy to install each fastener plate.
• The upper drive assembly can be quickly detached from either the AccuTrac EZ or the RhinoTrac EZ boot and connected to the other, so contractors do not have to invest in two complete tools to gain the advantage of having both. Interchangeable boots are sold separately.
• The RhinoTrac EZ is highly versatile, can be used on all unsulation types including hard-boards such as DensDeck and Securerock. The tool works with several OMG fasteners including:
  • #12 Standard RoofGrip Fasteners
  • #14 Heave Duty Fasteners
  • #15 Extra Heavy Duty (XHD) Fasteners.

RhinoTrac EZ is a stand-up insulation attachment tool for installing RhinoBond plates. For best performance and optimum bonding with the membrane, RhinoBond plates should be snug to the insulation board but not overdriven. With the tool's simple depth setting control, fasteners can be driven consistently to the proper depth, preventing over or under-driven fasteners. RhinoTrac's rigid caster wheels make moving in a straight line effortless, so plates are easy to locate under the membrane when it's time to weld them.

Use with OMG-manufactured RhinoBond plates and OMG #14 Heavy Duty or #15 XHD fasteners up to 8-inches on steel and wood decks.

Compare the labor steps - The chart below shows the possible productivity gains compared to the labor steps and time to install loose plates and screws or pre-assembled fasteners.
