* Free Freight Terms Do Not Apply *
Price: $64.95
Item #JLI-TM-2222CW
Write a review!
Description

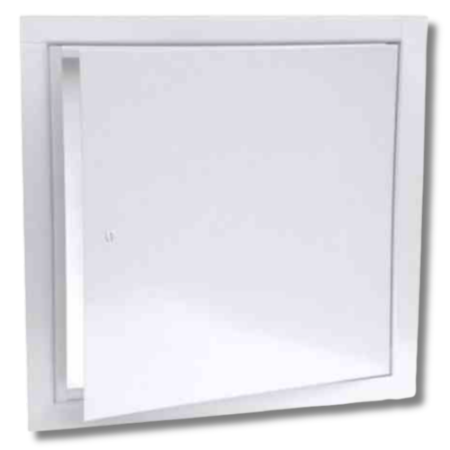

The JL Industries TM-2222CW is a fire-rated uninsulated access panel designed for ceilings requiring UL 1½-hour classification. Manufactured from cold-rolled steel, it provides strength and a clean recessed installation. The panel features a concealed hinge, spring-assisted self-closing latch, and a white powder coat finish that can be field-painted to match surrounding surfaces. Its 22″ × 22″ size makes it an ideal solution for medium access requirements in commercial or institutional settings.
Key Features
- UL-classified 1½-hour fire rating for ceiling assemblies
- Cold-rolled steel frame and door for strength and durability
- Concealed continuous hinge for smooth operation and flush fit
- Spring-assisted self-closing latch for safety compliance
- White powder coat finish, paintable in the field
- Designed specifically for recessed ceiling installation
- Made in the USA
Specifications
Model: TM-2222CW
Manufacturer: JL Industries
Dimensions: 22″ × 22″
Material: Cold-rolled steel
Fire Rating: UL 1½-hour ceiling assembly classification
Insulation: Uninsulated
Hinge: Concealed continuous hinge
Closure: Spring-assisted cam latch (self-closing)
Finish: White powder coat (paintable)
Mounting: Recessed, ceiling only
Weight: Approx. 13–15 lbs
Country of Origin: USA
How To
- Verify that the framed ceiling opening matches the panel size.
-
Cut and prepare the opening for the TM-2222CW access panel.
-
Insert the panel into the opening with the flange seated flush to the ceiling.
-
Secure the frame to the surrounding structure using appropriate screws.
-
Confirm hinge alignment and door swing for smooth operation.
-
Test the latch to ensure proper self-closing function.
-
Apply paint if needed to match the surrounding ceiling surface.
FAQs
Q: What is the fire rating of the TM-2222CW?
A: It is UL-classified for 1½-hour fire-rated ceiling assemblies.
Q: Is this panel insulated?
A: No, the TM-2222CW is an uninsulated access panel.
Q: Can this be used in wall installations?
A: No, it is designed specifically for ceiling applications.
Q: What material is used in construction?
A: It is built from cold-rolled steel with a white powder coat finish.
Q: Does the panel self-close?
A: Yes, the spring-assisted latch ensures automatic self-closing.
