* Free Freight Terms Do Not Apply *
Price: $37.40
Item #JLI-TM-1414CW
Write a review!
Description

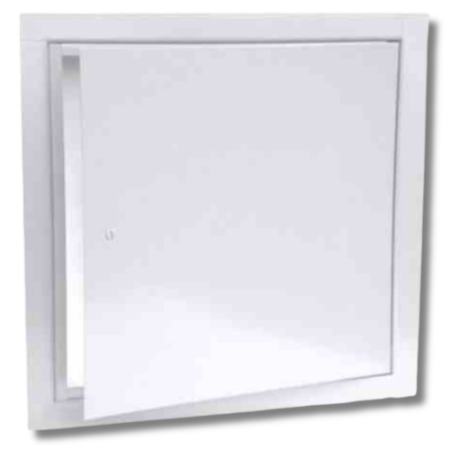

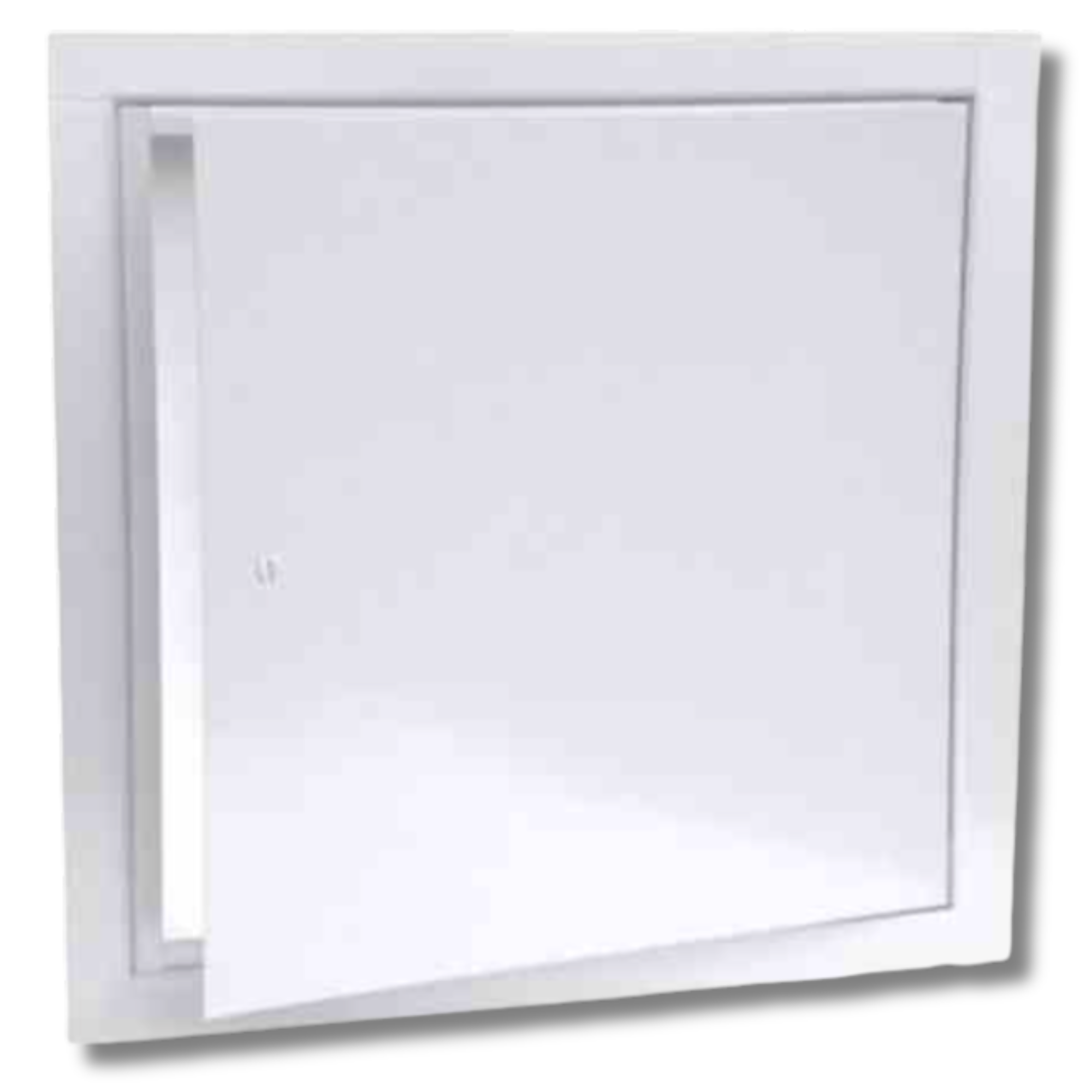

The JL Industries TM-1414CW Fire-Rated Uninsulated Access Panel provides a safe and durable solution for ceiling assemblies that require 1½-hour fire protection. Constructed from cold-rolled steel and finished in white powder coat, this panel is UL classified for fire-rated ceilings. The uninsulated design reduces weight while maintaining performance. A concealed hinge and flush fit design deliver a clean appearance for architectural spaces, making the TM-1414CW ideal for commercial, institutional, and residential applications where code compliance is essential.
Key Features
- UL classified for 1½-hour ceiling assemblies
- 14″ × 14″ opening size for convenient access
- Uninsulated design for lighter weight installation
- Cold-rolled steel construction for durability
- White powder coat finish for a clean appearance
- Concealed hinge for flush fit with ceilings
Specifications
Model: TM-1414CW Fire-Rated Uninsulated Access Panel
Manufacturer: JL Industries / Activar Construction Products Group
Application: Ceiling assemblies requiring fire-rated access
Fire Rating: 1½-hour UL classified for ceiling use
Construction: Cold-rolled steel panel and frame
Insulation: Uninsulated
Hinge: Concealed hinge for flush ceiling appearance
Finish: White powder coat (paintable as needed)
Opening Size: 14″ × 14″
Overall Dimensions: approx. 16″ × 16″
Weight: Approx. 12 lb
Made In: USA
How To
- Confirm ceiling assembly requires a 1½-hour fire-rated access panel.
-
Mark and cut the ceiling opening to 14″ × 14″ dimensions.
-
Insert the panel frame into the prepared opening.
-
Secure the frame to ceiling joists using appropriate fasteners.
-
Verify that the door sits flush and operates properly.
-
Finish edges as required for a clean ceiling appearance.
FAQs
Q: What is the fire rating of the TM-1414CW access panel?
A: It is UL classified for 1½-hour ceiling assemblies.
Q: Is this model insulated?
A: No, the TM-1414CW is an uninsulated panel.
Q: What is the construction material?
A: The panel and frame are made of cold-rolled steel.
Q: What finish does it have?
A: It is finished with a white powder coat.
Q: Can this be installed in walls?
A: No, this model is intended for ceilings only.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
