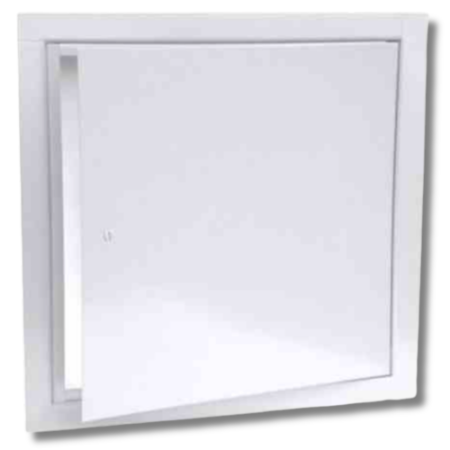

JL Industries TM-1010CW 10 × 10 Fire-Rated Uninsulated Access Panel – 1½-Hour Ceiling, White Powder Coat

The JL Industries TM-1010CW Fire Extinguisher Cabinet provides a compact and durable housing solution for small extinguishers. Built from cold-rolled steel and finished with a white powder coat, it offers strength and a clean appearance. The tubular steel trim with a 1″ flush flange delivers a modern look, while the clear acrylic glazing panel allows quick extinguisher visibility. This cabinet is designed for recessed installation and provides architectural-quality protection in commercial and residential settings.

Key Features

• Tubular trim design with clean, flush appearance
• Heavy-duty cold-rolled steel cabinet with powder-coated finish
• Clear acrylic window for extinguisher visibility
• Compact 10″ × 10″ format for smaller extinguishers
• Easy recessed installation with tubular trim frame
• Made in the USA

Model: TM-1010CW (10″ × 10″)

Manufacturer: JL Industries / Activar Construction Products Group

Application: Wall (vertical assemblies)

Construction: Cold-rolled steel cabinet with tubular steel trim

Door: Cold-rolled steel with clear acrylic glazing

Hinge & Closure: Continuous hinge with latch mechanism

Trim Style: Tubular steel trim, flush installation

Finish: White powder coat; other colors available

Opening Size: Door – 10″ H × 10″ W; Opening – 10 3/8″ H × 10 3/8″ W; Overall – approx. 12″ × 12″ × 2½″

Glazing: Clear acrylic window

Made In: USA

Weight: Approx. 8 lb

• Confirm wall space and framing to accommodate the 10″ × 10″ cabinet.
• Cut the wall opening to manufacturer’s recommended dimensions.
• Insert cabinet body into the opening, aligning flange flush with the wall.
• Secure cabinet with fasteners through tubular trim frame.
• Place extinguisher into the cabinet.
• Close and latch door; verify visibility through the glazing.

Q: What extinguisher size fits in the TM-1010CW?
A: It is designed for extinguishers up to approximately 5 lb.

Q: What does CW mean in the model number?
A: CW indicates a clear window door with tubular trim.

Q: Is the TM-1010CW fire-rated?
A: No, the TM series is non-rated and intended for architectural use.

Q: What material is the glazing?
A: The glazing is clear acrylic.

Q: Can this cabinet be surface-mounted?
A: No, it is designed for recessed installation only.
