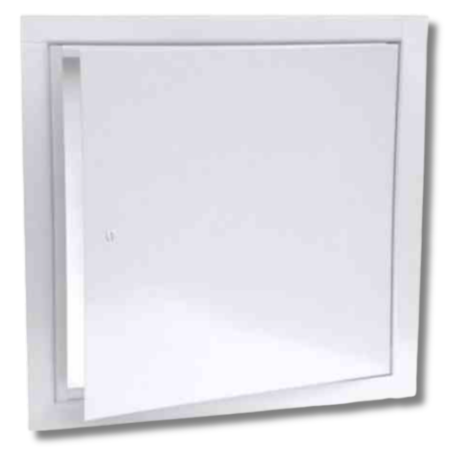

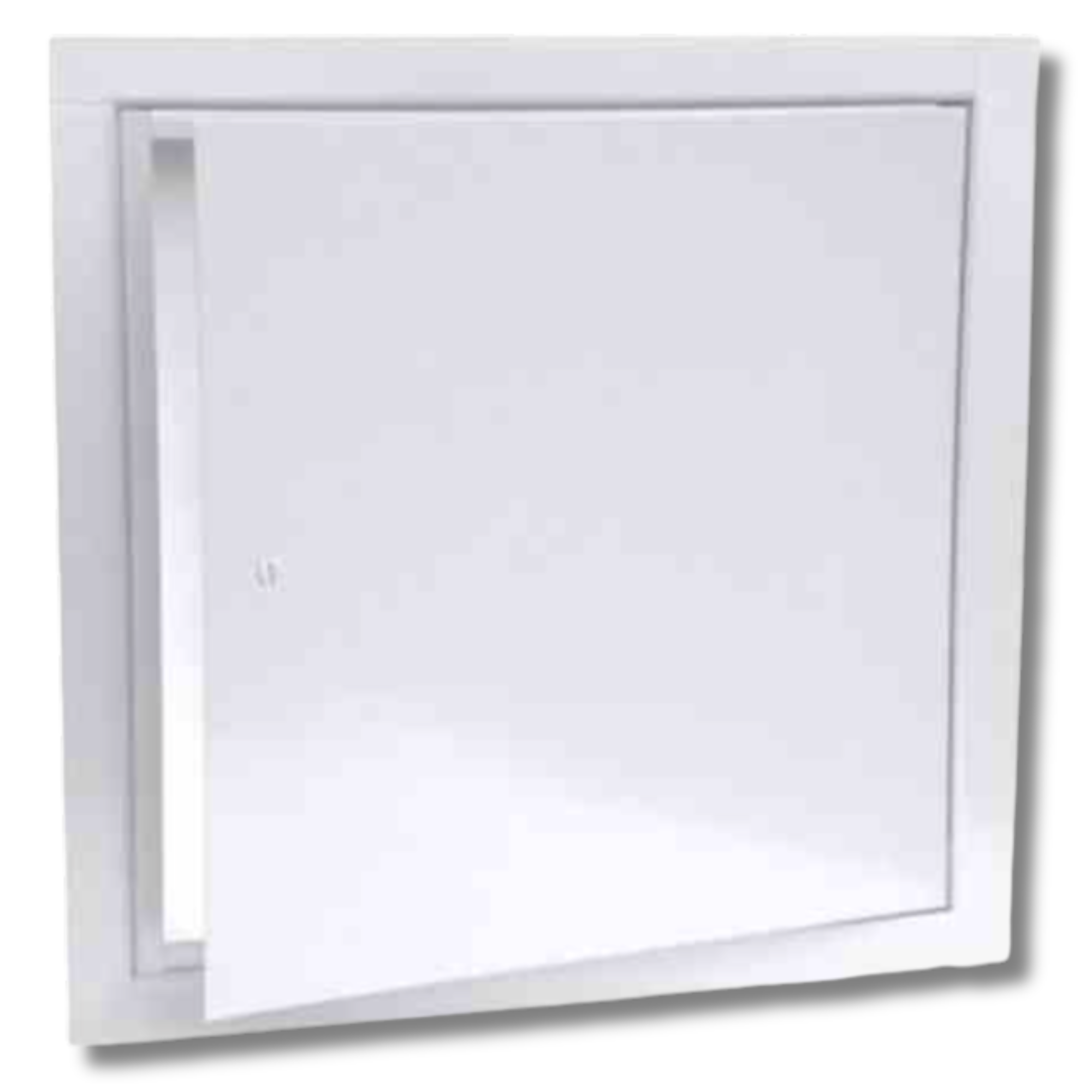

JL Industries TM-1212CW 12 × 12 Fire-Rated Uninsulated Access Panel – 1½-Hour Ceiling, White Powder Coat

The JL Industries TM-1212CW Fire Extinguisher Cabinet is a durable and practical solution for safely housing extinguishers in wall assemblies. Constructed from cold-rolled steel with tubular trim, it provides both strength and a clean architectural appearance. The door is fitted with a clear acrylic glazing panel, allowing visibility of the extinguisher while maintaining protection. Finished in a white powder coat, the TM-1212CW is designed for recessed installation and is an ideal choice for commercial and residential projects.

Key Features

• Tubular steel trim with a flush, modern profile
• Cold-rolled steel cabinet body with powder coat finish
• Clear acrylic glazing for extinguisher visibility
• Sized at 12″ × 12″ to accommodate medium extinguishers
• Easy recessed installation
• Made in the USA

Model: TM-1212CW (12″ × 12″)

Manufacturer: JL Industries / Activar Construction Products Group

Application: Wall (vertical assemblies)

Construction: Cold-rolled steel cabinet with tubular steel trim

Door: Cold-rolled steel with clear acrylic glazing

Hinge & Closure: Continuous hinge with latch mechanism

Trim Style: Tubular steel trim, flush mounting

Finish: White powder coat; other colors available

Opening Size: Door – 12″ H × 12″ W; Opening – 12 3/8″ H × 12 3/8″ W; Overall – approx. 14″ × 14″ × 2½″

Glazing: Clear acrylic window

Made In: USA

Weight: Approx. 9 lb

• Verify wall type and space to accept the 12″ × 12″ cabinet.
• Cut opening to manufacturer’s recommended size.
• Insert cabinet body into the opening, aligning flange flush with wall.
• Secure the frame with fasteners.
• Place extinguisher into cabinet body.
• Close and latch door; confirm clear visibility through the glazing.

Q: What extinguisher size fits in the TM-1212CW?
A: It is designed to accommodate extinguishers up to approximately 5–10 lb.

Q: What does CW indicate in the model number?
A: CW refers to a clear window door with tubular trim.

Q: Is this cabinet fire-rated?
A: No, the TM series is non-rated for architectural use.

Q: What is the glazing material?
A: The glazing is clear acrylic.

Q: Can this cabinet be surface-mounted?
A: No, it is intended for recessed installation only.
