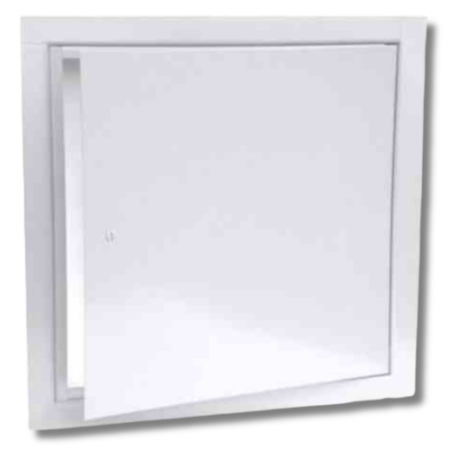

JL Industries TM-2230CW 22 × 30 Fire-Rated Uninsulated Access Panel – 1½-Hour Ceiling, White Powder Coat

The JL Industries TM-2230CW Fire-Rated Uninsulated Access Panel is UL-classified (“B-label”) for 1½-hour fire-rated ceiling assemblies. Built from a 16-gauge cold-rolled steel frame and a 20-gauge steel door, this panel is durable and code-compliant. It includes a continuous hinge that opens to 180° and a spring-assisted self-closing latch for secure operation. The white powder coat finish provides a clean look and may be repainted to match ceiling surfaces.

Key Features

• UL “B-label” classified for 1½-hour fire-rated ceiling use
• 22″ × 30″ clear opening size
• Uninsulated panel for reduced weight
• 16-ga frame and 20-ga door cold-rolled steel construction
• 180° continuous hinge for full access
• Spring-assisted self-closing latch ensures closure
• 1″ exposed paintable flange for clean installation
• Ready-to-finish white powder coat
• Made in the USA

Model: TM-2230CW (22″ × 30″)

Manufacturer: JL Industries / Activar Construction Products Group

Application: Horizontal ceiling installations requiring fire-rated access

Fire Rating: UL “B-label” 1½-hour for ceiling assemblies

Frame Material: 16-gauge cold-rolled steel

Door Material: 20-gauge cold-rolled steel

Insulation: Uninsulated

Hinge: Continuous hinge with 180° opening

Latch: Spring-assisted self-closing

Flange: 1″ exposed, paintable

Finish: White powder coat (other colors available)

Clear Opening: approx. 22 ½″ W × 30 ½″ H

Overall Face Dimensions: approx. 24″ W × 32″ H

Depth: approx. 1½″

UL Listings: ANSI/UL 10B, CAN/ULC-S104; meets ASTM E152

Made In: USA

Weight: approx. 20 lb

• Confirm the ceiling assembly requires a 1½-hour rated access panel.
• Mark and cut a ceiling opening sized for 22 ½″ × 30 ½″ clear opening.
• Insert the panel frame until the 1″ flange sits flush with the ceiling surface.
• Secure the panel with appropriate screws into structural framing.
• Check the hinge for smooth 180° swing.
• Verify the spring latch self-closes securely.
• Paint the panel if desired to match the ceiling.

Q: What is the fire rating of the TM-2230CW panel?
A: It is UL “B-label” classified for 1½-hour fire-rated ceiling assemblies.

Q: Is the panel insulated?
A: No — it is uninsulated for lighter weight and easier installation.

Q: What materials are used in its construction?
A: Frame is 16-ga cold-rolled steel; door is 20-ga cold-rolled steel.

Q: Is this suitable for wall installation?
A: No — it is designed specifically for ceiling use.

Q: Does it self-close?
A: Yes — the spring-assisted lash ensures automatic self-closing.
