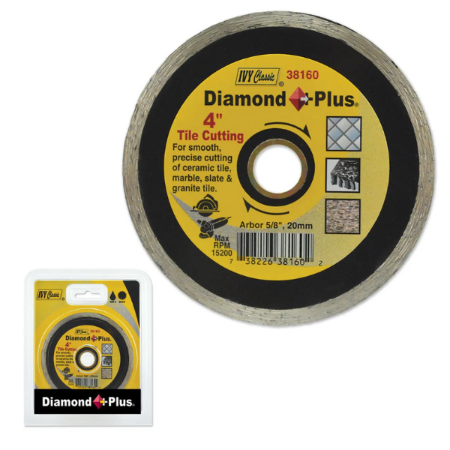

Ivy Classic 38160 - 4" Tile Cutting Diamond Blade

Tile Cutting Diamond Blades - Diamond Plus® (Carded)

The Diamond Plus® Tile Cutting Blade delivers dependable performance at an unbeatable value, making it ideal for small to medium cutting jobs. Engineered using the latest automated manufacturing technology, this blade features a continuous rim design for precise and smooth cuts through a variety of materials, including ceramic tile, marble, slate, and granite. Whether you're working dry or wet, the Diamond Plus® blade is a versatile and efficient choice for professionals and DIYers alike.

Key Features:

• Designed for both dry and wet cutting applications
• Continuous rim ensures smooth, chip-free cuts
• Ideal for ceramic tile, marble, slate, and granite
• Manufactured using advanced automated technology
• Cost-effective solution for small to medium jobs
• Carded for convenient retail display and storage

Product Type: Continuous-rim diamond tile blade (wet/dry)

Weight: ~3.5–5.0 oz (single blade; approximate)

Dimensions (Blade Size): 4" diameter × ~0.060–0.080" kerf (≈1.5–2.0 mm) × ~0.395" bore thickness (core)

Material: Steel core with diamond-impregnated continuous rim (bonded matrix)

Rim Style / Height: Continuous rim, ~5–7 mm tall (chip-free finish on brittle tile)

Arbor Size: 5/8" (15.88 mm); use reducer bushing if required by tool

Max RPM: ~13,500 RPM (verify label; never exceed tool or blade rating)

Cut Type: Straight cutting; best results wet on porcelain/stone, dry capable for short passes

Compatible Tools: 4" angle grinders and small tile saws accepting 5/8" arbor

Suitable Materials: Ceramic tile, porcelain tile, marble, natural stone veneers (finish cuts)

Performance Notes: Continuous rim prioritizes clean edges with minimal chipping; moderate feed pressure prevents heat build-up

Operating Guidance: Score then finish the cut; support work, start at full speed, use water on dense materials; avoid side-grinding

Safety: Wear ANSI-rated eye/ear/respiratory protection; use intact guards and proper water management if wet cutting

Included: One (1) 4" continuous-rim diamond tile blade

Q: Will this 4" diamond blade fit my grinder or tile saw?
A: Yes—it's a 4" continuous-rim blade with a 5/8" arbor, which fits most small tile saws and many angle grinders (use a reducer bushing if your tool requires it).

Q: Can I use it dry, or is water required?
A: It can cut dry for short passes, but wet cutting is recommended—especially on porcelain—to reduce heat, dust, and edge chipping.

Q: What materials is this blade best for?
A: Ceramic tile, porcelain tile, and marble; the continuous rim is tuned for smooth, chip-free finish cuts on brittle materials.

Q: How do I minimize chipping and extend blade life?
A: Let the tool reach full speed, use steady feed with light pressure, support the tile, and—when possible—cut wet; avoid side-grinding and keep the rim clean of debris.
