Vortex Diamond - VSS Series, General Purpose, Circular Diamond Saw Blade, 12"-14"

The Vortex Diamond VSS Series is a segmented, hot-pressed general purpose diamond blade designed for cutting concrete, brick, stone, and masonry. It can be used wet or dry depending on the application. The blade features a solid core with precision diamond segments for long-lasting performance.

Key features:

• Segmented blade design for efficient cutting
• Suitable for concrete, stone, brick, and masonry
• Hot-pressed segments for extended blade life
• Compatible with wet or dry cutting applications
• Available in 12-inch and 14-inch diameters

• Diameter sizes: 12 inches and 14 inches

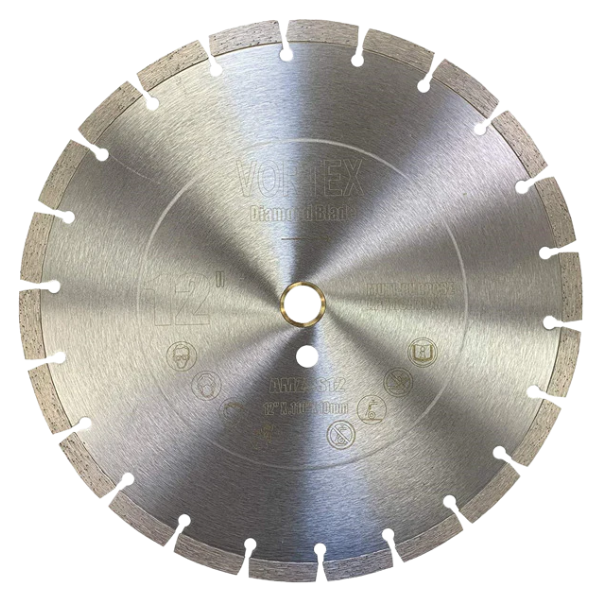

• 12-inch blade: thickness .110 inch, arbor 1 inch or 20 mm, segment height .395 inch (10 mm)

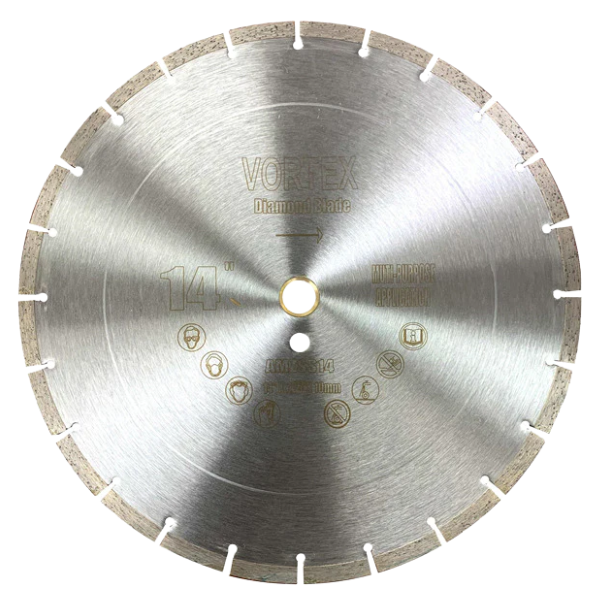

• 14-inch blade: thickness .125 inch, arbor 1 inch or 20 mm, segment height .395 inch (10 mm)
• Application: general purpose cutting of concrete, brick, and masonry
• Series: VSS Series
• SKUs: AD-12, AD-14

• Inspect the blade and flanges; confirm diameter and arbor fit your saw and that the blade is undamaged.
• Mount with the rotation arrow matching the saw’s rotation; tighten the arbor nut and confirm guard clearance.
• Verify the blade’s max RPM meets or exceeds the saw’s no-load RPM; run up to full speed before contacting the work.
• Choose wet or dry cutting: use continuous water flow when available; for dry cuts use shallow passes and allow cooling between cuts.
• Feed straight with steady pressure; avoid binding. If cutting slows or sparks increase, pause and dress the blade before continuing.

Q: How do I confirm the blade is safe for my saw’s speed?
A: Check the blade’s maximum RPM on the label and ensure it meets or exceeds the saw’s no-load RPM before use.

Q: When should I cut wet versus dry on concrete or masonry?
A: Use wet cutting whenever possible to control heat and dust; use dry cuts only in short passes with cooling intervals when water isn’t practical.

Q: What’s the quick way to dress a glazed diamond blade on site?
A: Make a few cuts into a dressing block or an abrasive concrete paver to expose fresh diamonds and restore cutting speed.

Q: Does rotation direction matter when mounting the blade?
A: Yes. Align the arrow with the saw’s rotation to ensure segment orientation and braze joints work as intended.

Q: How do I prevent overheating and segment loss during cutting?
A: Let the saw reach full speed, use proper support, avoid side-loading and binding, and cool the blade with water or rest periods during dry cutting.
