- Engineered for universal permanent installation on wood, concrete, and steel structures, providing a versatile anchorage solution for diverse jobsites
- Features a heavy-duty 12-inch galvanized steel post that elevates the tie-off point above the walking-working surface to improve safety and accessibility
- Constructed with a massive 16 inch x 16 inch x 1/2 inch base plate to ensure maximum stability and structural load distribution
- Equipped with a robust 1-1/4 inch x 2 inch welded eye for the secure and direct attachment of lanyards, SRLs, and other fall-arrest components
- Built from high-quality galvanized steel to provide superior long-term resistance against corrosion and harsh environmental exposure
- Designed for 5,000 lbs minimum static strength and fully compliant with ANSI Z359.18-2017 standards for anchorage connectors
Price: $460.00
Item #FALLTECH-78012WCSWE
Write a review!
Description

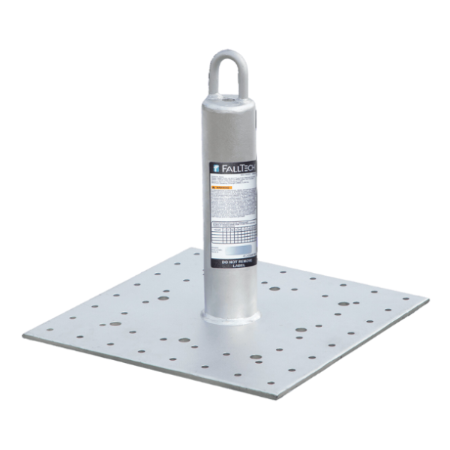

The FallTech 78012WCSWE Post Anchor with Welded-Eye is a durable, permanent anchorage solution designed for use on wood, concrete and steel structures. The unit features a welded 1-1/4″ × 2″ eye for connection of fall-arrest components, a galvanized steel post and base plate (16″ × 16″ × 1/2″), and elevates the user’s attachment point above the working surface. Designed for excellent durability and structural compatibility, this anchor requires user-supplied fasteners for installation and is available in multiple post-height variants for job-site flexibility.
Key features:
-
Welded fixed-position eye (1-1/4″ × 2″) for direct attachment of fall-arrest connectors
-
Galvanized steel post and base plate construction designed for installation on wood, concrete or steel
-
16″ × 16″ × ½″ base plate for stable, permanent anchorage placement
-
Available in multiple post height options to elevate connection point above the walking/working surface
-
User-supplied fasteners required, allowing flexible adaptation to substrate and installation method
Specifications
- SKU: 78012WCSWE
-
Product type: Post Anchor with Welded-Eye for Wood, Concrete & Steel
-
Base plate: 16″ × 16″ × ½″
-
Welded eye size: 1-1/4″ × 2″
-
Construction: Galvanized steel post and base plate
-
Installation requirement: User-supplied fasteners
-
Static strength: 5,000 lb minimum
-
ANSI user capacity: 130 to 310 lb maximum
-
OSHA user capacity: 130 to 310 lb maximum
-
Compliance: ANSI Z359.18-2017
FAQs
Q: What substrates can the 78012WCSWE anchor be installed on?
A: It is designed for wood, concrete and steel structures, allowing permanent anchorage with a galvanized steel base and post.
Q: Does the anchor include the mounting fasteners needed for installation?
A: No — the anchor requires user-supplied fasteners, enabling adapters to the specific substrate and installation method chosen.
Q: How tall is the post on the 78012WCSWE model?
A: The standard version includes a 12-inch post height to elevate the connection point above the working surface, with other height variants available for job-site customization.
Q: Why is the welded eye configuration beneficial?
A: The fixed welded 1-1/4″ × 2″ eye offers a secure, direct connection for fall-arrest devices and helps simplify user tie-off while maintaining structural integrity of the anchor.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
