- Designed for permanent, fixed-position installation on steel I-beams, columns, and other structural steel members
- Features a heavy-duty 2 inch by 4.5 inch alloy steel anchoring plate with pre-drilled 1/2 inch bolt holes for secure attachment
- Equipped with a high-strength forged alloy steel D-ring that provides a minimum static strength of 5,000 lbs for fall arrest applications
- Engineered for overhead anchorage, providing a reliable tie-off point for personal fall arrest, restraint, or work positioning systems
- Complies with the rigorous ANSI Z359.18-2017 standard for anchorage connectors, as well as OSHA 1926.502 and 1910.66 regulations
- Supports a wide user capacity range, accommodating individuals from 130 lbs up to 425 lbs (including tools and equipment) per OSHA guidelines
Price: $34.40
Item #FALLTECH-7414
Write a review!
Description

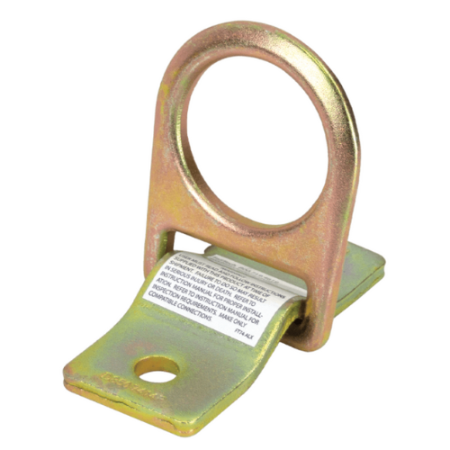

This overhead anchorage connector is designed for fixed position installation onto steel I-beams, columns or other steel structures using user-supplied fasteners. The anchoring plate measures 2″ × 4½″ and is made of alloy steel. The forged alloy D-ring provides a 5,000-lb minimum static strength tie-off point. The unit complies with ANSI Z359.18-2017 for fall protection anchorages.
Key features:
-
Forged D-ring and bolt-on plate designed for use on steel I-beams, columns and other steel structures
-
Heavy-duty alloy-steel construction with 2″ × 4½″ anchoring plate and ½″ bolt holes for fixed-position installation
-
5,000 lb minimum static strength D-ring for overhead anchorage applications
-
Complies with ANSI Z359.18-2017 standard
Specifications
- SKU: 7414
-
Installation plate: 2″ × 4½″ alloy-steel anchoring plate with ½″ bolt holes
-
Anchor D-ring: forged alloy steel; minimum static strength 5,000 lb
-
Static strength: 5,000 lb minimum
-
ANSI user capacity: 130 to 310 lb maximum
-
OSHA user capacity: 130 to 425 lb maximum
-
Compliance: ANSI Z359.18-2017; OSHA 1926.502 and 1910.66
FAQs
Q: What types of structures is this anchor intended for?
A: It is suitable for installation on steel I-beams, columns or other steel structural members where fixed overhead anchorage is required.
Q: What hardware is required for installation?
A: The anchor plate has ½″ bolt-holes and requires user-supplied bolts rated for the application and structure.
Q: Can the anchor be installed on concrete or wood structures?
A: No — it is designed specifically for use on steel structures. Alternate models should be used for other substrates.
Q: How does the anchor’s rated strength align with user capacity?
A: The anchor is rated for 5,000 lb static strength, which meets the structural requirement for personal fall arrest anchorage, while user capacity guidelines (130-425 lb) provide the range for individual users including equipment.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
