New!
- Features a high-strength aluminum alloy crossbar and steel clamping jaws designed for horizontal I-beams and H-beams
- Equipped with dual-adjusting jaws and concealed locking thumb latches to fit beam flanges from 4 inches to 14 inches wide and up to 1-1/4 inches thick
- Includes both short and long replaceable wear pads that ensure a snag-free trailing experience and protect the anchor from metal-on-metal abrasion
- Utilizes a centered plated alloy-steel D-ring to maintain proper lifeline orientation and prevent tangling while the user is in motion
- Engineered for mobile anchorage applications, allowing the device to glide smoothly along the beam for uninterrupted work positioning and fall arrest
- Fully compliant with ANSI Z359.18-2017 and OSHA standards, delivering a 5,000 lb minimum static strength and supporting up to 425 lbs per OSHA guidelines
Price: $290.00
Item #FALLTECH-7540A14
Write a review!
Description

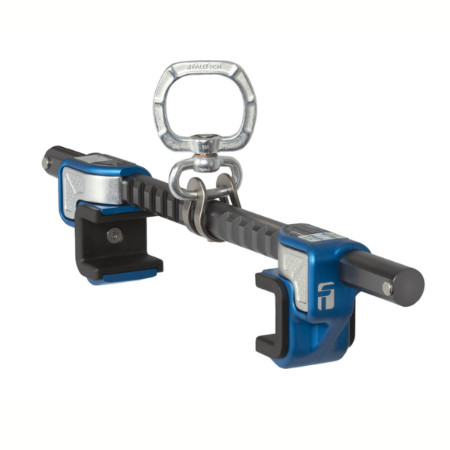

The FallTech BeamLock™ Anchor (model 7540A14) is designed for mobile anchorage use on horizontal I-beams and H-beams with flange widths from 4″ to 14″ and up to 1¼″ thick. It features an aluminum crossbar, steel clamping jaws with replaceable wear-pads, dual adjusting jaws with concealed locking thumb latches, and a centered alloy-steel D-ring on the crossbar for lifeline attachment. The system includes both short and long replaceable wear pads to facilitate trailing applications and maintain smooth movement.
Key features:
-
Dual-adjusting jaws with concealed locking thumb latches adapt to beam flanges from 4″ to 14″ wide and up to 1¼″ thick
-
Aluminum crossbar and steel clamping jaws with replaceable wear-pads for durability and mobility
-
Includes both short and long wear pads for trailing applications and a snag-free walking experience
-
Centered alloy-steel D-ring remains on the crossbar to maintain lifeline orientation during movement
Specifications
- SKU: 7540A14
-
Product type: BeamLock™ Anchor, Dual Adjustment, 4″ to 14″
-
Fit range: Beam flanges 4″ to 14″ wide, up to 1¼″ thick
-
Material — crossbar: Aluminum alloy; clamp jaws: steel with wear-pads
-
Replaceable wear-pads: short and long versions included
-
Static strength: 5,000 lb minimum
-
D-ring: Plated alloy steel; 5,000 lb minimum static strength
-
ANSI user capacity: 130 to 310 lb maximum
-
OSHA user capacity: 130 to 425 lb maximum
-
Compliance: ANSI Z359.18-2017; OSHA 1926.502 and 1910.66
FAQs
Q: What beam sizes will the 7540A14 accommodate?
A: It fits beam flange widths from 4″ to 14″ and thicknesses up to 1¼″ using its dual-adjusting jaws and locking thumb latches.
Q: Why are two sizes of wear pads included with this anchor?
A: The included short and long wear pads help protect the beam surface and reduce snagging during trailing movement, improving user mobility and longevity of the anchor.
Q: Can this anchor be used while walking along the beam?
A: Yes, the design supports trailing applications with minimal snagging and smooth movement, making it suitable for mobile use along horizontal I-beams.
Q: What kind of connection does the 7540A14 provide for the lifeline or SRL?
A: It provides a centered alloy-steel D-ring on the crossbar, ensuring proper alignment for lifeline or SRL attachments during use.
