- 2-Worker Capacity: Multi-user design allows up to two workers to connect and work simultaneously across the same line.
- 100' Hollow-Core Rope: Low-stretch 5/8-inch 12-strand hollow-core polyester line delivers a 5,000 lb. tensile rating.
- Thimbled End Termination: Features a pre-braided rope end fitted with a rugged steel thimble to prevent hook-friction wear.
- Complete Hardware Pack: Complete turn-key kit includes a plated steel line tensioner, 2 tie-off straps, 2 carabiners, and 2 sliding rings.
Price: $885.00
Item #FALLTECH-770001
Write a review!
Description

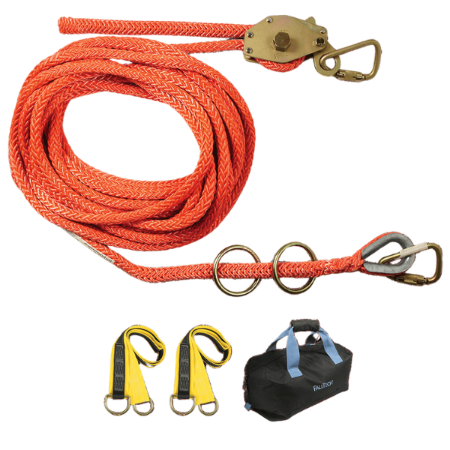

The FallTech 770001 Temporary Rope HLL System is a portable horizontal lifeline kit designed for two workers sharing a 100-foot span. The system uses a 5/8-inch low-stretch hollow-core polyester rope with a braided and thimbled end-termination. Included are plated steel hardware such as a line tensioner and two installation carabiners, plus two pass-through anchors and two connecting rings. Ideal for temporary installation, this system supports mobility across a work span while providing a fixed cable-style anchor point.
Key features:
-
5/8″ low-stretch hollow-core polyester rope for reliable temporary anchorage span
-
Braided and thimbled end-termination for durability at anchor points
-
Complete kit includes plated steel line tensioner, installation carabiners, pass-through anchors and connecting rings
-
Designed for two users across a 100′ horizontal span
Specifications
- SKU: 770001
-
Product type: Temporary Rope Horizontal Lifeline (HLL) System, 2-Person — 100′ span
-
Rope: 5/8″ braided 12-strand hollow-core polyester; minimum 5,000 lb tensile strength
-
Sling anchors: Polyester webbing with plated alloy steel D-rings; minimum 5,000 lb static strength
-
Carabiners: Plated alloy steel; minimum 5,000 lb static strength with 3,600 lb gate strength
-
Static strength: Minimum 5,000 lb
-
Included components: 100′ lifeline rope, line tensioner, 2 installation carabiners, 2 pass-through anchors, 2 connecting rings
-
Application context: Two-person horizontal lifeline across 100′ span for temporary use
- OSHA User Capacity - 310 lb max. per user; 2 users max.
FAQs
Q: Can this system support two workers at once on the span?
A: Yes, the 770001 kit is designed for two users sharing the 100-foot horizontal span under the manufacturer’s specifications.
Q: What makes the hollow-core polyester rope a good choice for this kit?
A: The 5/8″ low-stretch hollow-core polyester rope offers durability, flexibility and reduced stretch compared to conventional rope, making it suitable for temporary lifeline spans.
Q: What hardware comes in this kit to complete installation?
A: The kit includes a plated steel line tensioner, two installation carabiners, two pass-through anchors and two connecting rings, plus the lifeline rope itself.
Q: Is this kit appropriate for long-term permanent horizontal lifeline installation?
A: It is designed for temporary installation where mobility and quick setup are priorities; for permanent systems, review the manufacturer’s guidance and suitability.
