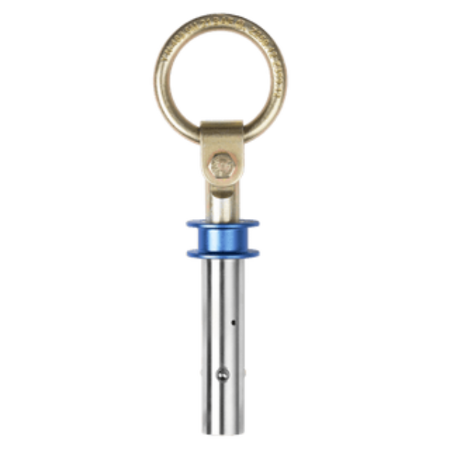

FallTech 7446 - Removable Concrete Anchor, 6,000lb

The FallTech 7446 Removable Concrete Anchor is designed for temporary anchorage in cured concrete walls and ceilings where reuse is required. With a forged O-ring connection point and full 360° swivel orientation, it installs into a pre-drilled hole (minimum 4-1/2″ depth, maximum 1″ diameter) and is assembled with galvanized and stainless-steel components. Suitable for use with horizontal lifeline (HLL) systems, the anchor has a static strength rating of 6,000 lb minimum.

Key features:

• Forged O-ring connection point with full 360° swivel for optimal connector alignment
• Designed for temporary anchorage use in cured concrete walls or ceilings with pre-drilled hole requirements (4-1/2″ minimum depth, 1″ maximum diameter)
• Assembled with galvanized and stainless-steel components for durability in concrete environments
• Rated for 6,000 lb minimum static strength to support fall-protection anchorage systems

• SKU: 7446
• Product type: Removable Concrete Anchor, 6,000 lb
• Static strength: 6,000 lb minimum
• Installation hole depth requirement: minimum 4-1/2″
• Installation hole diameter requirement: 1″ maximum
• Connection point: Forged O-ring with 360° swivel orientation
• Materials: Galvanized steel and stainless-steel components
• Application context: Temporary use in cured concrete walls and ceilings; suitable for use with horizontal lifeline systems

Q: How and where is the 7446 anchor installed?
A: The 7446 must be placed into a pre-drilled concrete hole at least 4½ inches deep and no larger than 1 inch in diameter, then secured for temporary anchor use.

Q: Can the 7446 anchor be reused after removal?
A: Yes — it is designed as a removable anchor for temporary use in cured concrete walls or ceilings and can be reused when properly inspected.

Q: What kinds of fall-protection systems is this anchor compatible with?
A: It is suitable for use with horizontal lifeline (HLL) systems and other anchorage-based fall protection setups, provided the overall system complies with required design parameters.

Q: What is the benefit of the 360° swivel O-ring on the 7446?
A: The full-rotation O-ring helps align the connection for the worker’s movement and lifeline direction, reducing unwanted side loading and improving connection performance.
