SafeWaze - 4-Person Rope HLL: Cross Arm Straps 30', 60', 80', 100'

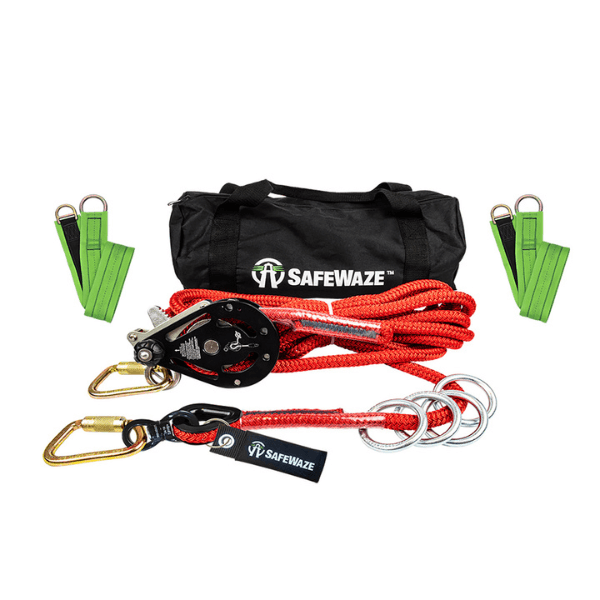

The SafeWaze 4‑Person Rope Horizontal Lifeline Kit delivers a portable fall arrest anchor system for up to four users. Each kit includes a 16 mm double-braid rope (energy-absorbing), 2 structural carabiners, 4 user O-rings, a swivel connection point, a tensioner with integrated wrench, and 2 heavy-duty cross-arm straps for rebar attachment. Designed for quick deployment and safe mobility, with included carrying bag and built to meet OSHA and ANSI fall protection standards

• Product Type: Horizontal Lifeline Kit – Rope-Based, for up to 4 users

• Kit Lengths & Weights:

  • 019‑8012: 30 ft – approx. 16.5 lb

  • 019‑8013: 60 ft – approx. 20.5 lb

  • 019‑8014: 80 ft – approx. 23.1 lb

  • 019‑8015: 100 ft – approx. 25.7 lb

• Rope Material: 16 mm double-braid polyester

• Rope Construction: 16-plait outer cover, 8-plait core

• Rope Tensile Strength: > 11,500 lb

• Carabiners (Structural): Gate-rated ≥ 3,600 lb

• User O-Rings: Minimum 5,000 lb tensile rating

• Cross-Arm Straps: 6 ft polyester, rated ≥ 9,500 lb

• User Capacity:

  • Up to 2 users @ max 420 lb (OSHA)

  • Up to 4 users @ max 310 lb (ANSI)

• Brackets & Tensioner:

  • Swivel eye anchor

  • Integrated rope tensioner with built-in wrench

• Carrying Case: Included

• Compliance: ANSI Z359.1, ANSI A10.32; OSHA 1910.66 and 1926.502

Q: What is the purpose of the 4-Person Rope HLL with Cross Arm Straps?

A: The 4-Person Rope Horizontal Lifeline (HLL) is designed to provide fall protection for multiple users working at height. It allows up to four workers to be safely connected to a horizontal lifeline, ensuring their safety and compliance with fall protection standards.

Q: What are the key features of this horizontal lifeline system?

A:

• Rugged double braid rope: Acts as an energy absorber for safety.
• Rope tensioner with built-in wrench: Facilitates easy adjustment and maintenance.
• Swivel connection point: Prevents the rope from twisting during use.
• Heavy-duty cross-arm strap anchors: Includes two 6' cross-arm straps for secure attachment.
• O-rings and carabiners: Provides secure connections.
• Convenient carry and storage bag: For easy transport and organization.

Q: What lengths are available for this horizontal lifeline?

A: The system is available in lengths of 30 feet (9.1 meters), 60 feet (18.3 meters), 80 feet (24.4 meters), and 100 feet (30.5 meters).
