- Professional 20 oz manual bulk gun for sealants and adhesives
- Rotating 2" steel barrel provides precise bead orientation and access in tight areas
- Dual oiled leather pistons and conical ejector ensure strong suction and smooth material flow
- Generates ~375 lbf thrust and 120 psi equivalent output for consistent dispensing
- Includes orange trim-to-size cone nozzle and threaded front cap for secure, leak-resistant performance
- Built with a 5/16" square drive rod and double grip plates for maximum durability
Price: $109.95
Item #321-DL-45-T17
Write a review!
Description

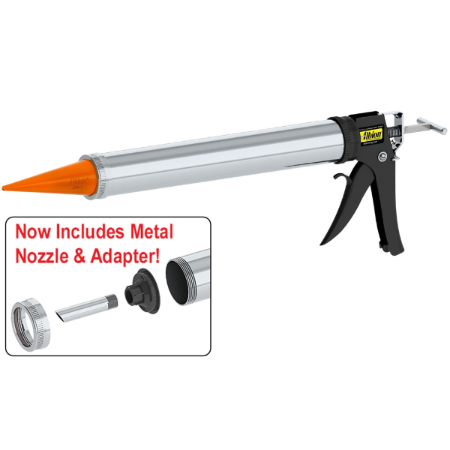

The Albion DL-45-T17 Special Deluxe Manual Bulk Gun is a rugged 20 oz bulk-loading dispenser featuring a rotating 2-inch steel barrel for precise bead orientation and a heavy-duty 5/16-inch square drive rod with double grip plates for long service life. Dual oiled leather pistons and a conical ejector generate strong suction for fast loading and smooth, uniform flow, while the threaded front cap accepts the included orange cone nozzle to size beads quickly without leaks. Built for daily professional use, the DL-45-T17 delivers consistent performance on long runs, corners, and detail work.
Key Features:
-
Rotating 2" steel barrel improves access and bead orientation
-
Heavy-duty 5/16" square drive rod with double hardened grip plates
-
Dual oiled leather pistons and conical ejector for strong suction and smooth flow
-
Approx. 375 lbf thrust and ~120 psi equivalent output
-
Threaded front cap with included orange cone nozzle for fast bead sizing
Specifications
- Model/MPN: DL-45-T17
-
Line/Type: Special Deluxe manual bulk-loading caulk gun
-
Capacity: 20 oz (approx. 1.5 pint) bulk loads
-
Barrel: 2" diameter steel; rotating; ~14" length
-
Drive: Manual, smooth-rod; 5/16" square rod; double grip plates
-
Thrust / Pressure (approx.): 375 lbf / 120 psi equivalent
-
Piston: Dual oiled leather with steel stiffener washers
-
Nozzle Interface: Threaded front cap; accepts cone nozzles
-
Typical Uses: Professional sealing and bonding with bulk materials
-
Includes: (1) DL-45-T17 bulk gun, (1) orange cone nozzle, threaded front cap, installed leather pistons and conical ejector
How To
- Retract the rod and remove the front cap/nozzle; verify the conical ejector is installed.
-
Bulk load: insert the barrel into the pail (or use a loading sleeve) and pull the rod to fill while keeping the outlet upright.
-
Reinstall the threaded cap; fit the orange cone nozzle and snug securely.
-
Prime: advance the rod until a steady stream forms; trim the cone tip to bead size and test on scrap.
-
Dispense with a steady angle and travel speed; rotate the barrel to maintain orientation.
-
Relieve pressure, remove excess material, and clean components before cure.
FAQs
Q: What capacity does the DL-45-T17 handle?
A: 20 oz bulk loads in a rotating 2" steel barrel.
Q: What nozzle is included?
A: An orange trim-to-size cone nozzle is included for quick bead sizing.
Q: How much output force does it have?
A: Approximately 375 lbf with about 120 psi equivalent pressure.
Q: What piston style is used?
A: Dual oiled leather pistons that help create strong suction for fast loading and smooth flow.
Q: Can I rotate the barrel during application?
A: Yes. The barrel rotates to keep the nozzle aligned around corners and along long runs.
