Albion 1135-3 Yellow Square Bead Nozzle (25 Pack)

The Albion 1135-3 Yellow Square Bead Nozzle is a trim-to-size plastic tip that seats itself in the center of the joint to lay down a flat, uniform square bead with minimal tooling. Designed for Albion 2" barrel Professional Line and B-Line bulk/sausage applicators (used with the proper ring/front cap), this 25-pack speeds fillet and cove joints, glazing, and other flat-bead applications across long runs by improving accuracy, visibility, and consistency while reducing waste.

Key Features:

• Square-bead geometry centers in the joint for cleaner, flatter results
• Trim-to-size plastic outlet; customize opening with a utility knife
• Improves speed and consistency versus freehand tip application

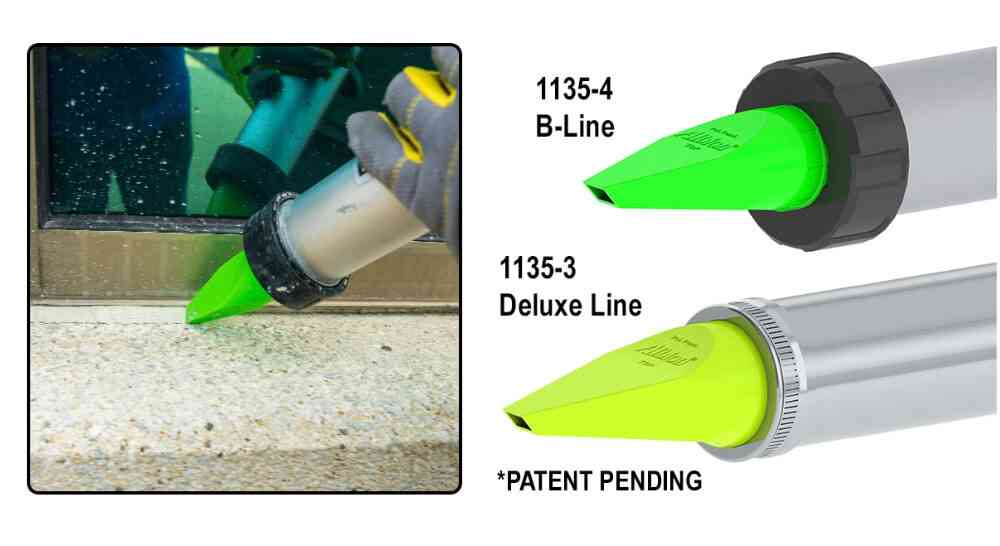

• Compatible with Albion 2" barrel Professional Line and B-Line guns (with correct cap)
• Bright yellow nozzle for better visibility of sealant during placement

• Model/Series: Square Bead Nozzle
• SKU(s): 1135-3

• MPN: 1135-3

• Bead Profile: Square, flat bead

• Tip Style: Trim-to-size plastic outlet

• Length: Approx. 5 in (nominal)

• Fitment: Albion 2" barrel bulk/sausage guns; use correct ring/front cap (e.g., 421-G01 on Pro Line)

• Typical Uses: Fillet and cove joints, glazing, flat horizontal joints

• Color/Finish: Fluorescent yellow

• Includes: (25) Yellow Square Bead Nozzles (1135-3)

• Select joint size and mark the desired opening on the nozzle.
• Trim the outlet carefully with a sharp utility knife to the required width.
• Install the correct ring/front cap on the 2" barrel gun and seat the nozzle securely.
• Purge material until flow is steady; center the nozzle in the joint.
• Apply with a consistent angle and travel speed for a flat, uniform square bead.
• After use, relieve pressure; wipe and clean the nozzle before material cures (or dispose).

Q: Which applicators does the 1135-3 fit?
A: Albion 2" barrel Professional Line and B-Line bulk/sausage guns when used with the proper ring/front cap.

Q: Is the opening fixed or adjustable?
A: Adjustable—trim the plastic outlet to match your joint size.

Q: What applications benefit most?
A: Fillet and cove joints, glazing, and flat horizontal joints needing a square bead.

Q: Can I reuse these nozzles?
A: Yes, if cleaned before the sealant cures; otherwise treat them as disposables.

Q: Do I need a specific cap to mount the nozzle?
A: Yes. Use the correct ring/front cap for your gun series (e.g., 421-G01 on Pro Line).
