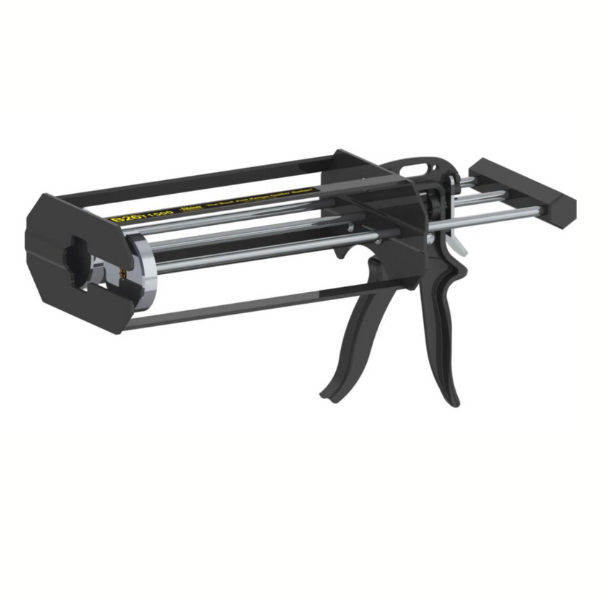

Albion B26T1500 - 1500 Series B-Line Manual Multi-Component Cartridge Gun (1:1) Side Load

The Albion B26T1500 is a 1500 Series B-Line manual multi-component cartridge gun designed for 1:1 side-by-side cartridges, pairing a high-thrust 26:1 smooth-rod drive with a rigid frame and side-load carriage for fast changeouts and excellent bead control. Built to run twin 750 × 750 ml packs, it delivers consistent ratio and mixing when used with the appropriate static mixers and retaining nut supplied with the adhesive. A full-size handle, ladder hook, and Albion’s durable gripping plates make the B26T1500 a jobsite-ready choice for dispensing 2-part epoxies, acrylics/MMA, polyurethanes, and structural adhesives in roofing, façade, anchoring, and general construction applications.

Key Features:

• 26:1 high-thrust smooth-rod drive for thicker, 2-part materials
• Side-load carriage for quick cartridge swaps and clear sight lines
• Accepts 1:1 mix ratio twin cartridges (750 × 750 ml; 1500 ml total)
• Works with standard static mixers and retaining nut supplied with the cartridge
• Rugged B-Line construction with full-size handle and ladder hook

• Model/MPN: B26T1500
• Line/Type: B-Line manual multi-component (dual-cartridge) dispenser
• Mix Ratio: 1:1 (side-by-side)
• Capacity: 750 × 750 ml (1500 ml total)
• Drive Ratio: 26:1 high-thrust manual
• Load Style: Side-load carriage
• Compatible Materials: 2-part epoxies, acrylics/MMA, polyurethanes, structural adhesives
• Nozzle/Mixer: Uses appropriate static mixer and retaining nut per cartridge manufacturer
• Color: Green/Metal
• Includes: (1) B26T1500 1:1 side-load manual dual-cartridge gun (mixers/cartridges not included)

• Verify your cartridges are 1:1 (750 × 750 ml) and select the manufacturer-specified static mixer and retaining nut.
• Retract the rod, open the side-load carriage, and seat both cartridges fully with outlet ports aligned.
• Attach the retaining nut and static mixer; tighten securely per cartridge instructions.
• Prime: advance the drive until both components flow; purge a small amount to ensure a uniform, fully mixed stream.
• Apply: maintain a steady angle/travel speed; if flow slows with thick materials, pause and resume to keep bead quality.
• Shutdown: relieve pressure, cap/replace the mixer if pausing, and remove/clean hardware per material guidance.

Q: What cartridges does the B26T1500 accept?
A: Twin side-by-side 1:1 cartridges, typically 750 × 750 ml (1500 ml total).

Q: What is the drive ratio?
A: 26:1 high-thrust manual drive for medium- to high-viscosity two-component materials.

Q: Do I need a specific mixer?
A: Use the static mixer and retaining nut specified by the cartridge manufacturer for your adhesive.

Q: What’s the advantage of side-load?
A: Faster cartridge changeouts and clear visibility of the mixer/nozzle during application.

Q: Is it suitable for epoxies and MMAs?
A: Yes. It’s commonly used with epoxies, acrylics/MMA, polyurethanes, and other 2-part construction adhesives.
