- Built for large-volume dual-component dispensing using 1:1 cartridges
- Pneumatic drive drastically reduces user effort compared to manual guns
- Ideal for production environments requiring consistent, mixed epoxy output
- Delivers instant on/off air control for clean, accurate bead starts
- Supports structural, anchoring, façade, and bonding applications
Price: $639.95
Item #321-AT1500X
Write a review!
Description

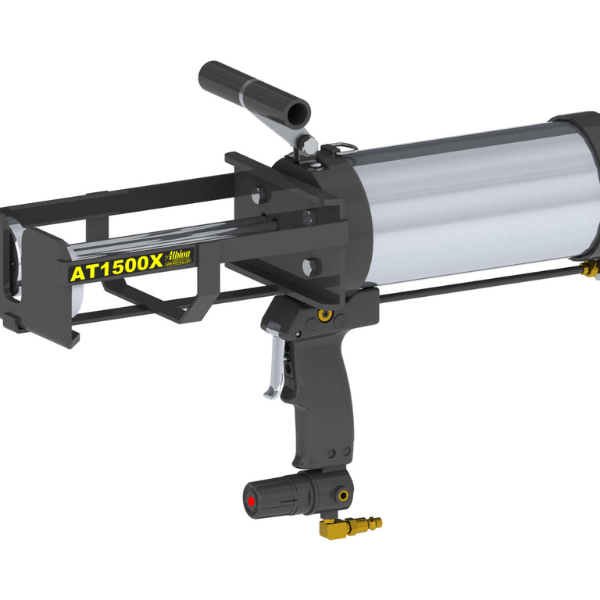

The Albion AT1500X is a 1500 Series AT Line air-powered multi-component dispenser for dual 750 mL side-by-side cartridges in a standard 1:1 mix ratio. A responsive pneumatic valve delivers instant on/off flow, while regulator-controlled air pressure lets you match output to material viscosity and mixer size. The rigid frame and synchronized plungers promote accurate component feed through standard static mixers for a uniform, fully mixed bead. Built for daily production, the AT1500X reduces operator fatigue versus manual drives and streamlines staging with a balanced handle and ladder hook.
Key Features:
-
Air-powered drive with instant on/off valve for clean starts and stops
-
Accepts dual 750 mL side-by-side cartridges (1:1; 1500 mL total)
-
Regulator-controlled flow to tune output to viscosity and nozzle size
-
Synchronized plungers and rigid frame support mix accuracy
-
Uses standard static mixers and retaining nuts from cartridge suppliers
Specifications
- Model/MPN: AT1500X
-
Line/Type: 1500 Series AT Line, air-powered (pneumatic) multi-component dispenser
-
Capacity: 1500 mL total (two 750 mL cartridges)
-
Mix Ratio: Standard 1:1 side-by-side
-
Drive: Pneumatic valve with trigger control
-
Air Inlet: 1/4" NPT (use clean, regulated compressed air)
-
Flow Control: Adjust at the line regulator; start low and increase as needed
-
Interface: Uses cartridge manufacturer’s static mixer and retaining nut
-
Typical Materials: 2-part epoxies, acrylics/MMA, polyurethanes, structural/anchoring adhesives
-
Includes: (1) AT1500X pneumatic dual-cartridge gun (tool-only; battery/charger not applicable; cartridges, mixers, and accessories sold separately)
How To
- Connect a clean, regulated air line (1/4" NPT) and set a low starting pressure.
-
Verify a 1:1 dual 750 mL cartridge and select the manufacturer-specified static mixer/retaining nut.
-
Retract the rod and fully seat the 1:1 cartridge with outlet ports aligned.
-
Install the retaining nut and static mixer; tighten per cartridge instructions.
-
Prime by pulsing the trigger until both components reach the mixer; purge a small amount to ensure a uniform, fully mixed stream.
-
Apply a steady bead, adjusting regulator pressure for viscosity and nozzle size; shut off air, relieve pressure, and clean components after use.
FAQs
Q: What cartridge size and ratio does the AT1500X accept?
A: Dual 750 mL side-by-side cartridges in a standard 1:1 mix ratio (1500 mL total).
Q: How is flow controlled on this tool?
A: With your line regulator and the tool’s pneumatic on/off valve—start at low pressure and adjust as needed.
Q: Which static mixers are compatible?
A: Use the mixer type and retaining nut specified by the adhesive/cartridge manufacturer.
Q: Is a compressor required?
A: Yes. Provide a clean, regulated compressed air supply with a 1/4" NPT connection.
Q: What’s included in the box?
A: The AT1500X dispenser only; cartridges, mixers, air hose/regulator, and accessories are sold separately.
