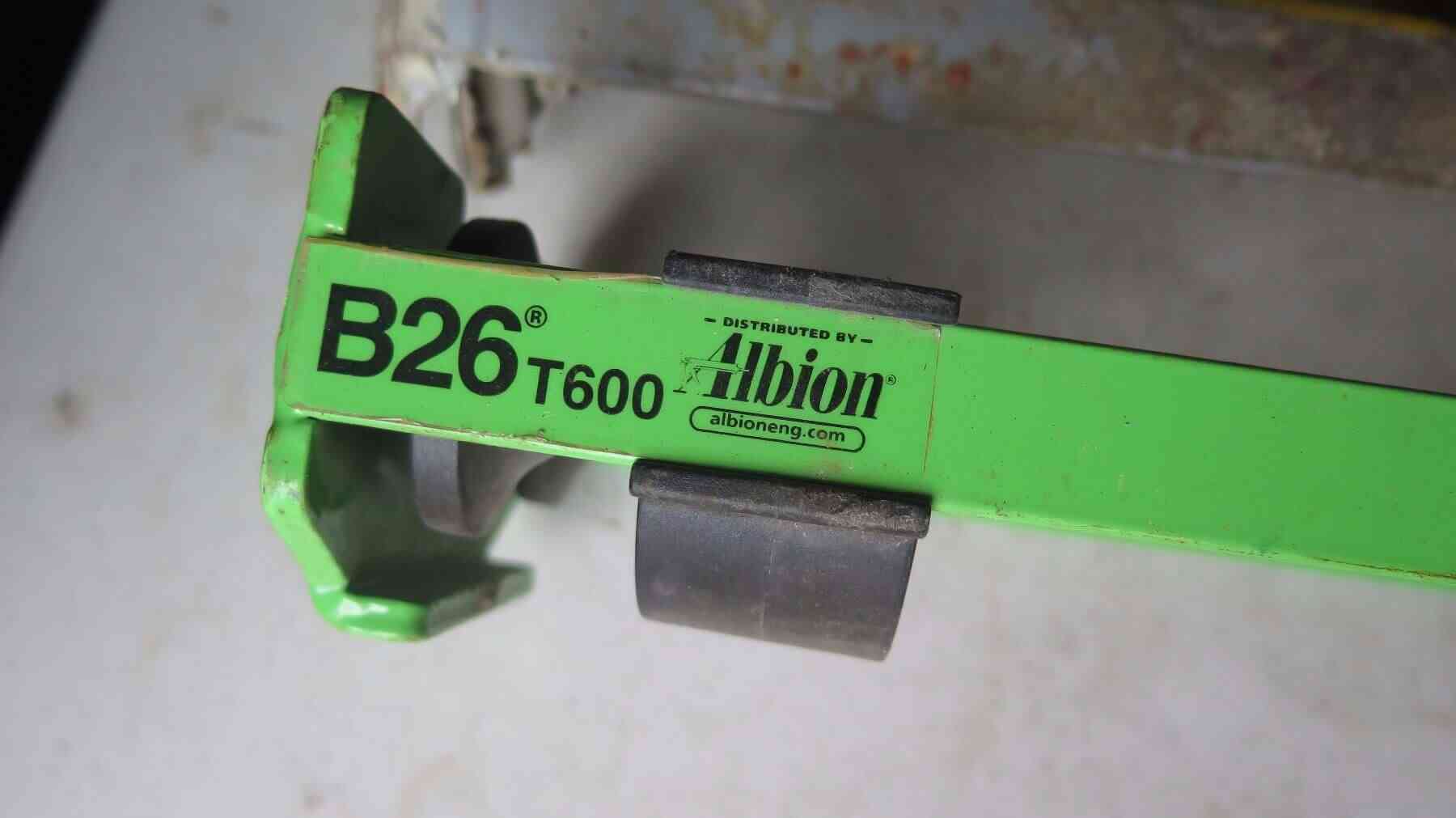

Albion B26T600 600 Series B-Line Manual Multi-Component Cartridge Gun (1:1) & (2:1)

The Albion B26T600 is a 600 Series B-Line manual multi-component cartridge gun designed for 600 mL side-by-side packs in both 1:1 and 2:1 ratios. A high-thrust 26:1 smooth-rod drive multiplies hand force for pushing medium to thicker two-part epoxies, acrylics/MMA, and polyurethanes through static mixers with clean starts and consistent flow. The rigid frame and synchronized plungers help maintain mix accuracy, while the full-size handle and ladder hook improve ergonomics and staging on long runs. Compatible with common retaining nuts and mixer styles supplied with the adhesive, the B26T600 is built for daily jobsite reliability.

Key Features:

• 26:1 high-thrust smooth-rod drive for medium to high-viscosity 2-part materials
• Accepts 600 mL side-by-side cartridges in 1:1 and 2:1 mix ratios
• Synchronized plungers and rigid frame support consistent mix accuracy
• Works with standard static mixers and retaining nuts from cartridge suppliers
• Full-size handle and ladder hook for comfortable, efficient production

• Model/MPN: B26T600
• Line/Type: B-Line manual multi-component (dual-cartridge) dispenser
• Capacity: 600 mL total (typ. 1:1 = 300 × 300 mL; 2:1 ≈ 400 × 200 mL; cartridge dependent)
• Mix Ratios: 1:1 and 2:1 (side-by-side)
• Drive Ratio: 26:1 high-thrust manual
• Cartridge Style: Side-by-side dual cartridge; uses manufacturer’s mixer and retaining nut
• Compatible Materials: 2-part epoxies, acrylics/MMA, polyurethanes, structural adhesives
• Color/Finish: Green/Metal
• Includes: (1) B26T600 dual-cartridge gun (cartridges/mixers not included)

• Confirm cartridge ratio (1:1 or 2:1) and select the manufacturer-specified static mixer and retaining nut.
• Retract the rod and seat the 600 mL side-by-side cartridge fully with outlet ports aligned.
• Attach the retaining nut and static mixer; tighten per cartridge instructions.
• Prime: advance the drive until both components reach the mixer; purge a small amount to ensure a uniform, fully mixed stream.
• Apply: run a steady bead, adjusting travel speed for viscosity and nozzle size; pause as needed to maintain mix quality.
• Shutdown: release pressure; cap or replace the mixer if pausing; clean hardware after use.

Q: Which cartridges does the B26T600 accept?
A: 600 mL side-by-side dual cartridges in 1:1 or 2:1 ratios (confirm dimensions with your cartridge supplier).

Q: What is the drive ratio and why is it useful?
A: 26:1 high-thrust multiplies hand force for smoother dispensing of medium to thicker two-part materials.

Q: Do I need a special mixer?
A: Use the static mixer and retaining nut specified by the adhesive/cartridge manufacturer.

Q: What materials are typical?
A: Two-part epoxies, acrylics/MMA, polyurethanes, and structural adhesives—verify compatibility with your material supplier.

Q: How is mix accuracy maintained?
A: Synchronized plungers and a rigid frame help keep the cartridge’s designed ratio through the static mixer.
