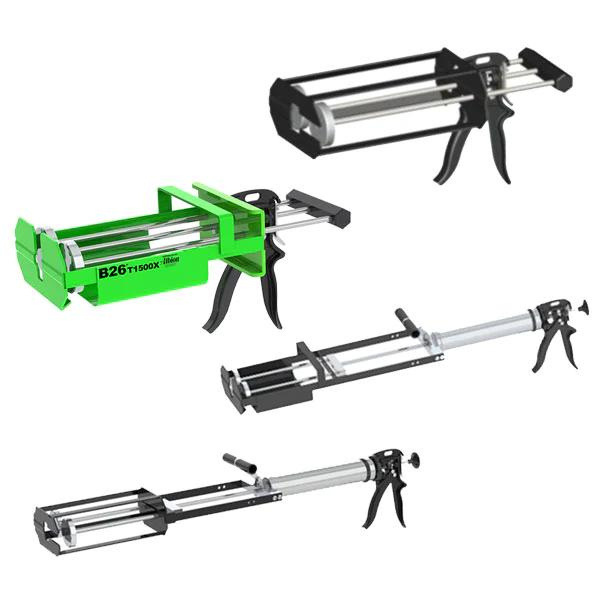

Albion B26T1500X Dual 750ml Cartridge Dispensing Gun - 1500 mL Output

The Albion B26T1500X is a heavy-duty B-Line manual multi-component dispenser for dual 750 mL side-by-side cartridges (1:1; 1500 mL total). Its 26:1 high-thrust smooth-rod drive multiplies hand force to move thick two-part sealants and structural adhesives through static mixers with clean starts and consistent flow. A rigid steel frame and synchronized plungers help maintain ratio accuracy, while a full-size handle and ladder hook reduce fatigue and simplify staging. Compatible with common retaining nuts and static mixers supplied with the adhesive, the B26T1500X is built for reliable, daily jobsite use.

Key Features:

• 26:1 high-thrust smooth-rod drive for medium to high-viscosity 2-part materials
• Accepts dual 750 mL (1:1) side-by-side cartridges — 1500 mL total output
• Synchronized plungers and rigid frame support mix accuracy and uniform flow
• Works with standard static mixers and retaining nuts from cartridge suppliers
• Full-size ergonomic handle and ladder hook for efficient production

• Model/MPN: B26T1500X
• Line/Type: B-Line manual multi-component (dual-cartridge) dispenser
• Capacity: 1500 mL total (two 750 mL cartridges; 1:1 ratio)
• Mix Ratio: 1:1 (side-by-side)
• Drive Ratio: 26:1 high-thrust manual
• Cartridge Style: Side-by-side dual cartridge; uses manufacturer’s mixer and retaining nut
• Compatible Materials: 2-part epoxies, acrylics/MMA, polyurethanes, structural/anchoring adhesives
• Color/Finish: Green/Metal
• Includes: (1) B26T1500X dual-cartridge gun (cartridges, mixers, and retaining nuts not included)

• Verify the cartridge set is 1:1 (two 750 mL cylinders) and select the manufacturer-specified static mixer and retaining nut.
• Retract the rod and fully seat the dual 750 mL cartridge with outlet ports aligned.
• Install the retaining nut and static mixer; tighten per cartridge instructions.
• Prime: advance the drive until both components reach the mixer; purge a small amount to ensure a uniform, fully mixed stream.
• Apply a steady bead, adjusting travel speed for viscosity and nozzle size; pause to maintain mix quality as needed.
• Relieve pressure when stopping; cap or replace the mixer if pausing, and clean hardware after use.

Q: What cartridge size and ratio does the B26T1500X accept?
A: Dual 750 mL side-by-side cartridges in a 1:1 mix ratio (1500 mL total).

Q: What is the drive ratio?
A: A high-thrust 26:1 manual drive for consistent flow of thicker two-part materials.

Q: Which static mixers are compatible?
A: Use the static mixer and retaining nut specified by the adhesive/cartridge manufacturer.

Q: What materials are typical?
A: Two-part epoxies, acrylics/MMA, polyurethanes, and other structural/anchoring adhesives—confirm compatibility with your supplier.

Q: Are cartridges and mixers included?
A: No. The tool is supplied without cartridges or static mixers.
