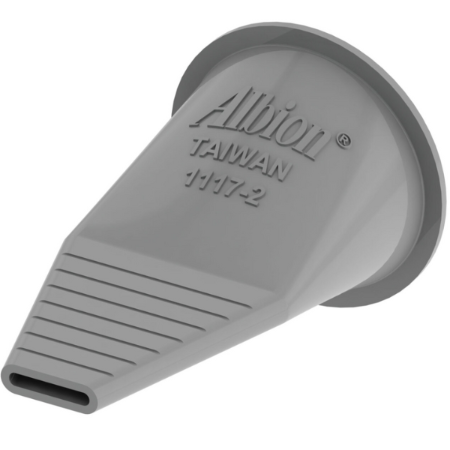

Albion 1117-2 1/8" Ribbon Bead Nozzle

The Albion 1117-2 1/8" Ribbon Bead Nozzle lays a flat, uniform 1/8-inch-thick ribbon of sealant with a trim-to-size mouth that adjusts from 5/8 inch up to 1-1/2 inches. Designed for speed and consistency on air barrier, flashing, and lap-joint work, the durable plastic tip fits standard Albion 2" barrel sausage and bulk systems (use the correct front cap, e.g., 868-1 for B-Line). Installers can shape the opening with a utility knife in small increments and fine-tune coverage by tool angle and travel speed to reduce troweling and cleanup.

Key Features:

• Forms a clean, flat 1/8" ribbon bead for uniform coverage
• Adjustable width from 5/8" to 1-1/2" by trimming the outlet
• Trim-to-size plastic nozzle; quick customization with a utility knife
• Compatible with Albion 2" barrel sausage and bulk guns (use proper front cap)
• Speeds air barrier, flashing, and lap-joint applications with less waste

• Model/Series: Ribbon Bead Nozzle
• SKU(s): 1117-2
• MPN: 1117-2
• Bead Thickness: 1/8" ribbon
• Adjustable Width: 5/8"–1-1/2" (trim-to-size)
• Construction: Durable plastic nozzle
• Fitment: Albion 2" barrel sausage/bulk systems; front cap required (e.g., 868-1 for B-Line)
• Typical Uses: Air barrier sealants, flashing, lap joints
• Color/Finish: Gray
• Includes: (1) Ribbon Bead Nozzle (1117-2)

• Choose target ribbon width (5/8" to 1-1/2").
• Trim the nozzle mouth to size with a sharp utility knife in small increments.
• Install the correct front cap and seat the nozzle securely on the gun.
• Purge material until flow is steady; set a consistent angle and travel speed.
• Dispense the 1/8" ribbon; adjust angle/speed for minor coverage changes.
• Relieve pressure after use and clean or dispose of the nozzle before cure.

Q: What ribbon sizes can this nozzle apply?
A: A 1/8" thick ribbon with adjustable width from 5/8" to 1-1/2" by trimming.

Q: Which applicators does it fit?
A: Albion 2" barrel sausage and bulk guns using the correct front cap.

Q: Do I need a specific front cap?
A: Yes—use the proper cap for your gun series (e.g., 868-1 on B-Line models).

Q: Is it reusable?
A: Yes, if cleaned promptly before the sealant cures; otherwise treat as disposable.

Q: What applications is it best for?
A: Air barriers, flashing, and lap joints where flat ribbon coverage is preferred.
