Albion DL-59-T17 Special Deluxe 30 oz Manual Bulk Gun - Professional Stel Barrel Caulking Dispenser

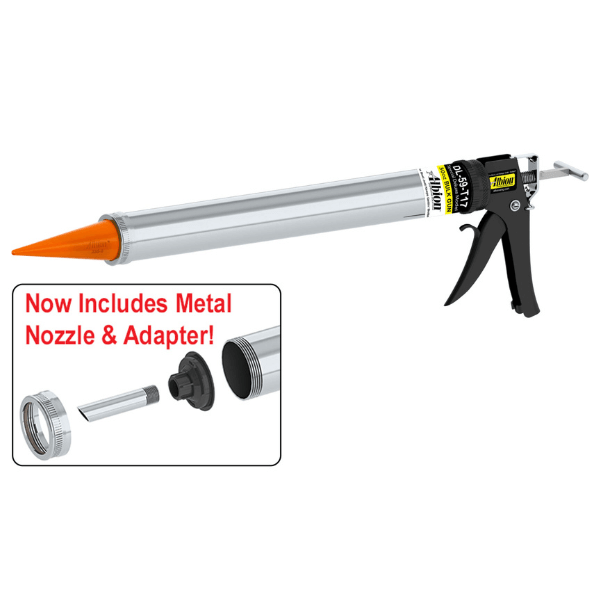

The Albion DL-59-T17 Special Deluxe Manual Bulk Gun is a rugged 30 oz bulk-loading dispenser featuring a rotating 2-inch steel barrel for precise bead orientation and a heavy-duty 5/16-inch square drive rod with double grip plates for long service life. Dual oiled leather pistons and a conical ejector create strong suction for fast loading and smooth, uniform flow, while the threaded front cap accepts the included orange cone nozzle for clean, trim-to-size bead control. Built for daily professional use, the DL-59-T17 delivers consistent performance on long runs, corners, and detail work with high-volume bulk materials.

Key Features:

• Rotating 2" steel barrel improves access and bead orientation
• Heavy-duty 5/16" square drive rod with double hardened grip plates
• Dual oiled leather pistons and conical ejector for strong suction and smooth flow
• Approx. 375 lbf thrust and ~120 psi equivalent output
• Threaded front cap with included orange cone nozzle for quick bead sizing

• Model/MPN: DL-59-T17
• Line/Type: Special Deluxe manual bulk-loading caulk gun
• Capacity: 30 oz (approx. 1 quart minus 2 oz) bulk loads
• Barrel: 2" diameter steel; rotating; ~18" length
• Drive: Manual smooth-rod; 5/16" square rod; double grip plates
• Thrust / Pressure (approx.): 375 lbf / 120 psi equivalent
• Piston: Dual oiled leather with steel stiffener washers
• Nozzle Interface: Threaded front cap; accepts cone nozzles
• Typical Uses: Professional sealing and bonding with bulk materials

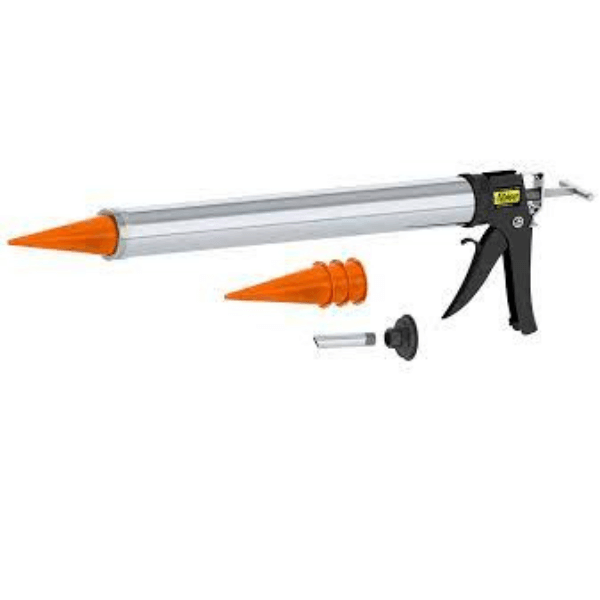

• Includes: (1) DL-59-T17 bulk gun, (1) orange cone nozzle, threaded front cap, installed leather pistons and conical ejector

• Retract the rod and remove the front cap/nozzle; verify the conical ejector is installed.
• Bulk load: insert the barrel into the pail (or use a loading sleeve) and draw the rod to fill while keeping the outlet upright.
• Reinstall the threaded front cap; fit the orange cone nozzle and snug securely.
• Prime: advance the rod until a steady stream forms; trim the cone tip to bead size and test on scrap.

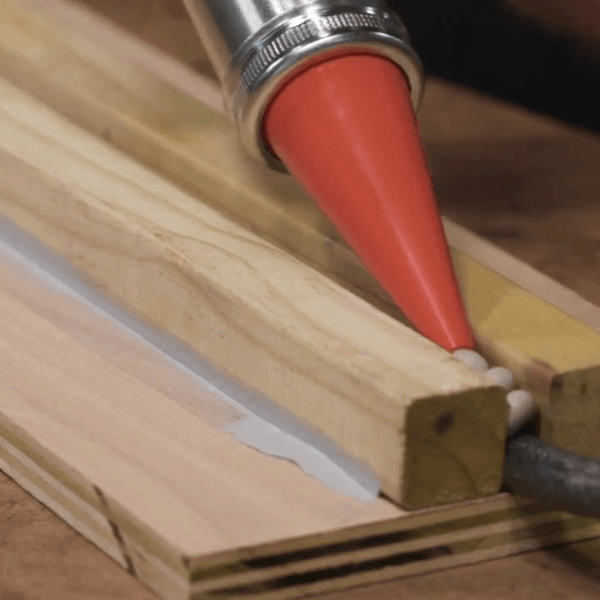

• Dispense with a steady angle and travel speed; rotate the barrel to maintain orientation.
• Relieve pressure, remove excess material, and clean components before cure.

Q: What capacity does the DL-59-T17 handle?
A: 30 oz bulk loads in a rotating 2" steel barrel.

Q: What nozzle is included?
A: An orange trim-to-size cone nozzle is included for quick bead sizing.

Q: How much output force does it have?
A: Approximately 375 lbf with about 120 psi equivalent pressure.

Q: What piston style is used?
A: Dual oiled leather pistons that help create strong suction for fast loading and smooth flow.

Q: Can I rotate the barrel during application?
A: Yes. The barrel rotates to keep the nozzle aligned around corners and along long runs.
