- High-thrust 26:1 smooth-rod drive for pushing thicker 10:1 two-part materials
- Accepts 10:1 side-by-side dual cartridges (approx. 825 mL total)
- Rigid frame with synchronized plungers for accurate mixing and bead consistency
- Compatible with standard static mixers & retaining nuts (per cartridge manufacturer)
- Durable B-Line construction with full-size handle and ladder hook for jobsite use
Price: $145.00
Item #321-B26T825
Write a review!
Description

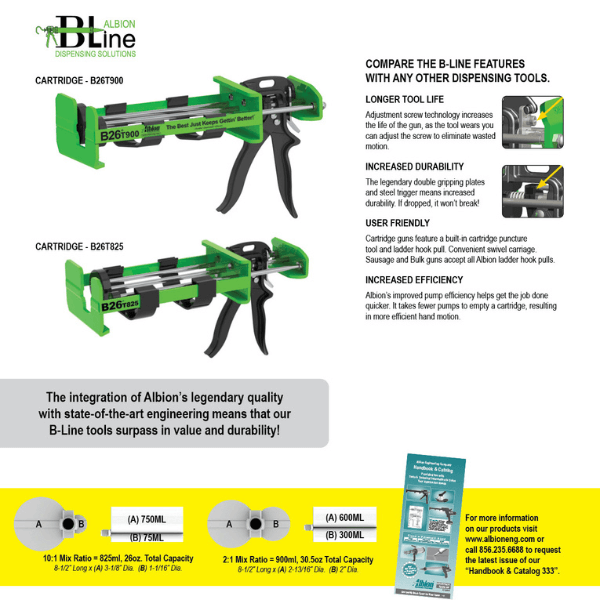

The Albion B26T825 is a 1500 Series B-Line manual multi-component cartridge gun configured for 10:1 side-by-side cartridges. Its smooth 26:1 high-thrust drive multiplies hand force to push thicker two-part adhesives through static mixers with consistent ratio and bead quality. A rigid frame keeps plungers synchronized for mix accuracy, while the full-size handle and ladder hook support comfortable, efficient production on anchoring, structural, façade, glazing, and general construction applications using 10:1 systems.
Key Features:
-
26:1 high-thrust smooth-rod drive for thicker 10:1 materials
-
Accepts 10:1 side-by-side dual cartridges (approx. 825 mL total)
-
Synchronized plungers and rigid frame support mix accuracy
-
Interfaces with standard static mixers and retaining nuts
-
Full-size handle and ladder hook for dependable jobsite use
Specifications
- Model/MPN: B26T825
-
Line/Type: B-Line manual multi-component (dual-cartridge) dispenser
-
Capacity: ~825 mL total (typ. 10:1 packs e.g., ~750 mL base + ~75 mL hardener; cartridge dependent)
-
Mix Ratio: 10:1 (side-by-side)
-
Drive Ratio: 26:1 high-thrust manual
-
Cartridge Style: Side-by-side dual cartridge; uses manufacturer’s static mixer and retaining nut
-
Compatible Materials: 10:1 two-part epoxies, acrylics/MMA, polyurethanes, anchoring/structural adhesives
-
Color/Finish: Green/Metal
-
Includes: (1) B26T825 dual-cartridge gun (cartridges and mixers not included)
How To
- Verify your cartridge is 10:1 (approx. 825 mL) and select the manufacturer-specified static mixer and retaining nut.
-
Retract the rod and seat the side-by-side cartridge fully with outlet ports aligned.
-
Attach the retaining nut and static mixer; tighten securely per cartridge instructions.
-
Prime by advancing the drive until both components flow; purge a small amount to ensure a uniform, fully mixed stream.
-
Apply a steady bead, adjusting travel speed for viscosity and nozzle size to maintain mix quality.
-
Relieve pressure when stopping; cap/replace the mixer if pausing, and clean hardware after use.
FAQs
Q: What cartridges does the B26T825 accept?
A: 10:1 side-by-side dual cartridges, typically around 825 mL total (cartridge dimensions vary by supplier).
Q: What is the drive ratio?
A: A high-thrust 26:1 manual drive for pushing medium-to-thick two-part materials.
Q: Which static mixers are compatible?
A: Use the mixer type and retaining nut specified by your adhesive/cartridge manufacturer.
Q: What applications is it suited for?
A: Anchoring, structural bonding, façade/glazing, and general construction using 10:1 two-part systems.
Q: Are cartridges and mixers included?
A: No. The B26T825 tool is supplied without cartridges or static mixers.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
