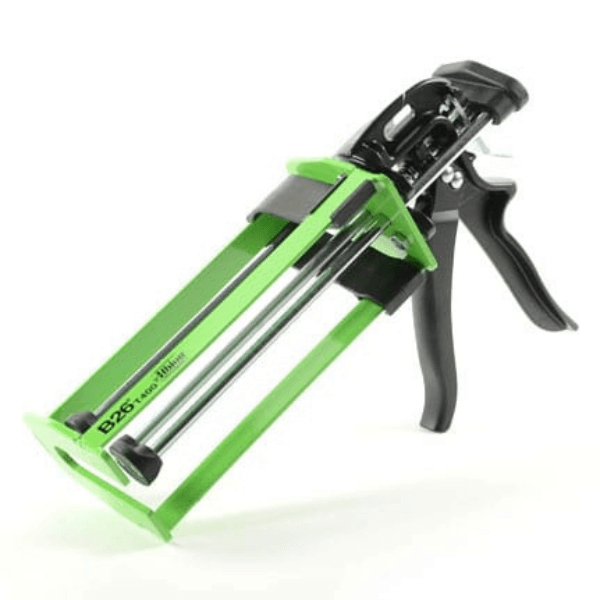

Albion B26T400 400 Series B-Line Manual Multi-Component Cartridge Gun (1:1, 2:1)

The Albion B26T400 is a 400 Series B-Line manual multi-component cartridge gun engineered for 400 mL side-by-side cartridges in both 1:1 and 2:1 mix ratios. Its high-thrust 26:1 smooth-rod drive multiplies hand force to push medium-to-thicker two-part epoxies, acrylics/MMA, and polyurethanes through static mixers with excellent ratio control. A rigid frame keeps plungers synchronized and aligned, a full-size handle reduces fatigue on long runs, and a ladder hook simplifies staging. Built for daily jobsite use, the B26T400 supports common mixer/retaining-nut styles supplied with the adhesive for reliable, uniform mixing and bead quality.

Key Features:

• 26:1 high-thrust smooth-rod drive for medium-to-high viscosity 2-part materials
• Accepts 400 mL side-by-side cartridges in 1:1 and 2:1 mix ratios
• Rigid frame and synchronized plungers for consistent ratio and flow
• Works with standard static mixers and retaining nuts from cartridge suppliers
• Full-size handle and ladder hook for comfortable, efficient production

• Model/MPN: B26T400
• Line/Type: B-Line manual multi-component (dual-cartridge) dispenser
• Capacity: 400 mL total (typ. 1:1 = 200 × 200 mL; 2:1 ≈ 270 × 135 mL; cartridge dependent)
• Mix Ratios: 1:1 and 2:1 (side-by-side)
• Drive Ratio: 26:1 high-thrust manual
• Cartridge Style: Twin SxS (uses manufacturer’s mixer and retaining nut)
• Compatible Materials: 2-part epoxies, acrylics/MMA, polyurethanes, structural adhesives
• Color: Green/Metal
• Includes: (1) B26T400 dual-cartridge gun (cartridges/mixers not included)

• Confirm cartridge ratio (1:1 or 2:1) and select the manufacturer-specified static mixer and retaining nut.
• Retract the rod and seat the 400 mL side-by-side cartridge(s) fully with outlet ports aligned.
• Attach the retaining nut and static mixer; tighten per cartridge instructions.
• Prime both components by advancing the drive until material reaches the mixer; purge a small amount to ensure a uniform, fully mixed stream.
• Apply a steady bead, adjusting pace for viscosity and nozzle size; pause as needed to maintain mix quality.
• Relieve pressure when stopping; cap or replace the mixer if pausing, and clean hardware after use.

Q: Which cartridges does the B26T400 accept?
A: 400 mL side-by-side dual cartridges in 1:1 or 2:1 mix ratios (cartridge-specific dimensions apply).

Q: What is the drive ratio?
A: A high-thrust 26:1 manual drive for pushing medium-to-thick two-part materials.

Q: Do I need a special mixer?
A: Use the static mixer and retaining nut specified by the cartridge/adhesive manufacturer.

Q: What materials are typical?
A: Two-part epoxies, acrylics/MMA, polyurethanes, and other construction adhesives—verify compatibility with your material supplier.

Q: Does it maintain mix accuracy?
A: The synchronized plungers and rigid frame help maintain the cartridge’s designed mix ratio through the mixer.
