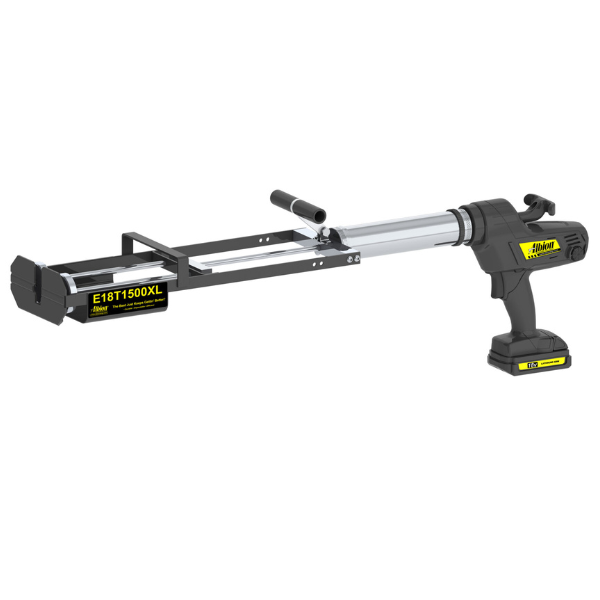

Albion E18T1500XL Cordless Dual Cartridge Gun - 18V Multi-Component Dispenser

The Albion E18T1500XL is an 18-volt cordless multi-component dispenser for dual 750 mL side-by-side cartridges (1:1, 1500 mL total). A variable-speed trigger and flow dial deliver controlled output through static mixers, while auto-reverse briefly backs off pressure at release to reduce ooze and stringing. The rigid frame and synchronized plungers help maintain ratio accuracy for a uniform, fully mixed bead with epoxies, acrylics/MMA, and polyurethanes. Built for daily production, the E18T1500XL reduces hand fatigue versus manual drives and streamlines staging with a balanced grip and ladder hook.

Key Features:

• 18V cordless drive with variable-speed trigger and top flow dial
• Auto-reverse anti-drip minimizes ooze at starts and stops
• Accepts dual 750 mL side-by-side cartridges (1:1; 1500 mL total)
• Synchronized plungers and rigid frame for reliable mix accuracy
• Uses standard static mixers and retaining nuts from cartridge suppliers

• Model/MPN: E18T1500XL
• Type/Line: Cordless multi-component (dual-cartridge) dispenser
• Capacity: 1500 mL total (two 750 mL cartridges), 1:1 mix ratio
• Power: 18V Li-ion (battery/charger availability depends on kit)
• Speed Control: Variable-speed trigger with flow/speed dial; auto-reverse anti-drip
• Cartridge Style: Side-by-side 1:1; uses manufacturer’s mixer and retaining nut
• Typical Materials: 2-part epoxies, acrylics/MMA, polyurethanes, structural/anchoring adhesives
• Color/Finish: Green/Metal/Black
• Includes: E18T1500XL cordless gun (tool-only in most configurations; battery/charger, cartridges, and mixers sold separately)

• Charge and install an 18V battery; verify trigger and forward/reverse operation.
• Confirm the cartridge set is 1:1 (dual 750 mL) and select the manufacturer-specified static mixer and retaining nut.
• Retract the rod and fully seat the 1:1 cartridge with outlet ports aligned.
• Attach the retaining nut and static mixer; tighten per cartridge instructions.
• Set the flow dial low and prime with brief trigger pulls until both components reach the mixer; purge a small amount for a uniform mixed stream.
• Apply a steady bead, adjusting trigger/dial for viscosity and nozzle size. Relieve pressure when pausing; cap or replace the mixer and clean hardware after use.

Q: What cartridge size and ratio does the E18T1500XL accept?
A: Dual 750 mL side-by-side cartridges in a 1:1 mix ratio (1500 mL total).

Q: Does it have anti-drip control?
A: Yes. Auto-reverse briefly backs off pressure at trigger release to reduce ooze and stringing.

Q: Are battery and charger included?
A: Many configurations are tool-only. Check the specific kit for battery/charger inclusion.

Q: Which static mixers are compatible?
A: Use the mixer and retaining nut specified by the adhesive/cartridge manufacturer.

Q: What materials are typical?
A: Two-part epoxies, acrylics/MMA, polyurethanes, and structural/anchoring adhesives—verify compatibility first.
