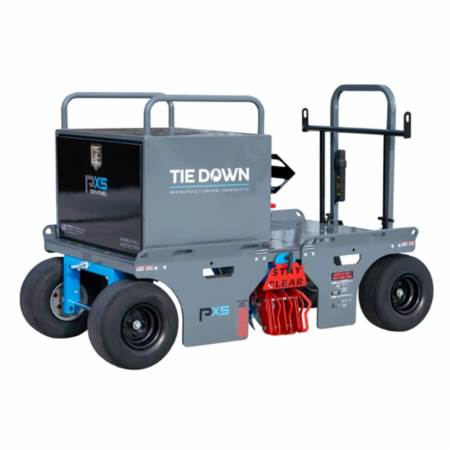

Tie Down 72833 PX5 Sentinel Mobile Fall Protection System - 7 Worker Capacity, Portable Roof Safety

The Tie Down 72833 PX5 Sentinel Penetrating Mobile Fall Protection System provides maximum rooftop safety for multiple users with a single cart. It protects seven workers at once, five in fall arrest and two in fall restraint, making it the largest capacity mobile fall protection system in its class. The PX5 weighs approximately 1,285 lb and includes a locking toolbox, front locking tow handle, forklift pockets, lifting rings, and a rolled goods rack. It ships jobsite ready and is engineered for use on multiple roof systems including concrete, EPDM, TPO, built-up, ISO, and PVC.

Key Features

• Protects 7 workers: 5 fall arrest and 2 fall restraint
• Penetrating anchorage with heavy duty steel spikes
• Locking toolbox, fire extinguisher holder, and rolled goods rack included
• Forklift pockets, lifting rings, and tow handle for mobility and placement
• Complies with OSHA 1926.502 and ANSI Z359.6 standards

• SKU: 72833
• Product name: PX5 Sentinel Penetrating Mobile Fall Protection System
• Users supported: 7 (5 fall arrest, 2 restraint)
• Weight: 1,285 lb
• Length: 86 in
• Width: 48 in
• Height: 54 in
• Anchor type: penetrating steel spikes
• Tires: flat-free, 500 lb rated each (2,000 lb total capacity)
• Material / finish: steel with TS22 coating
• Roof compatibility: concrete, built-up, EPDM, TPO, ISO, PVC
• Compliance: OSHA 1926.502, ANSI/ASSE Z359.6-2009 (D)
• Features: locking toolbox, front tow handle, forklift pockets, lifting rings, rolled goods rack, fire extinguisher holder
• Warranty: 1 Year Limited
• Country of origin: USA

• Place the PX5 Sentinel on a structurally sound area of the roof.
• Use the tow handle to move and align the cart to the desired location.
• Engage the penetrating spikes into the substrate fully.
• Attach lanyards for fall arrest to designated anchor points and restraint lines to restraint points.
• Use forklift pockets or lifting rings if repositioning is needed.
• Secure tools in the integrated toolbox and lock before operation.
• Inspect spikes, connections, and stored items regularly during use.

Q: How many workers can the 72833 PX5 Sentinel support?
A: It supports up to 7 workers — 5 in fall arrest and 2 in fall restraint.

Q: What is the weight of the PX5 Sentinel?
A: Approximately 1,285 lb.

Q: Which roofing systems is it compatible with?
A: Concrete, built-up, EPDM, TPO, ISO, and PVC.

Q: What safety standards does it comply with?
A: It meets OSHA 1926.502 and ANSI/ASSE Z359.6 requirements.

Q: What built-in features assist with mobility and storage?
A: Forklift pockets, lifting rings, tow handle, toolbox, rolled goods rack, and fire extinguisher holder.
