Tie Down 70755 ZipRail Gravel Stop Kit - All-in-One Fall Protection System, 420 ft.

The Tie Down 70755 ZipRail Gravel Stop Complete Kit is a comprehensive guardrail and fall protection system providing 420 ft of rooftop edge protection. The kit includes gravel stop brackets, zip rail components, stanchions, corner assemblies, container, and hoisting features for ease of deployment. It is designed to allow full perimeter mobility and guardrail access without requiring wearer lines or warning systems.

Key Features

• Provides 420 ft of guardrail / fall protection coverage

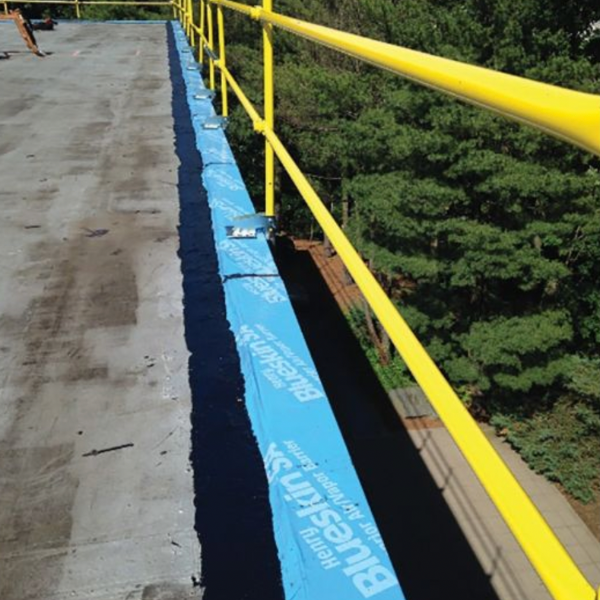

• Gravel stop brackets mount to flat roof edges for secure rail anchoring
• Stanchions use pop pins for tool-free rail connection

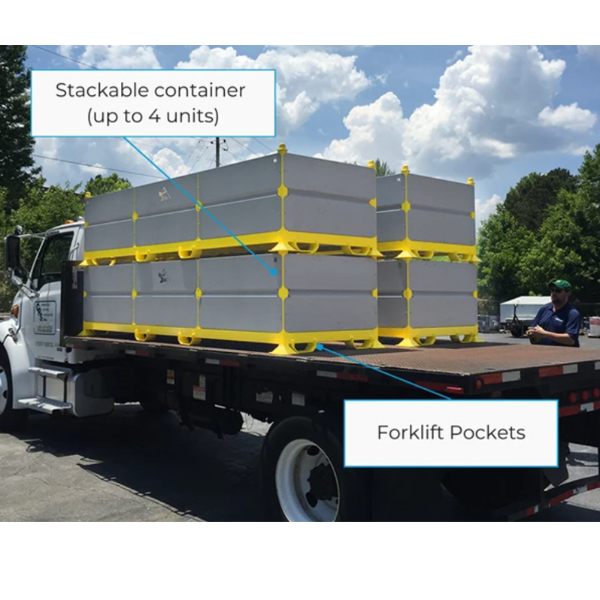

• Includes forklift pockets, hoist rings, and stackable container
• Meets OSHA fallback and guardrail requirements for rooftop systems

• SKU: 70755
• Product name: ZipRail Gravel Stop Complete Kit (420 ft)
• Coverage length: 420 ft
• Color scheme: Grey / Yellow
• Compliance / standards: OSHA 1910.29, OSHA 1926.502
• Weight (kit): 2,069 lb
• Height: 38.00 in
• Length: 122.00 in
• Width: 34.00 in

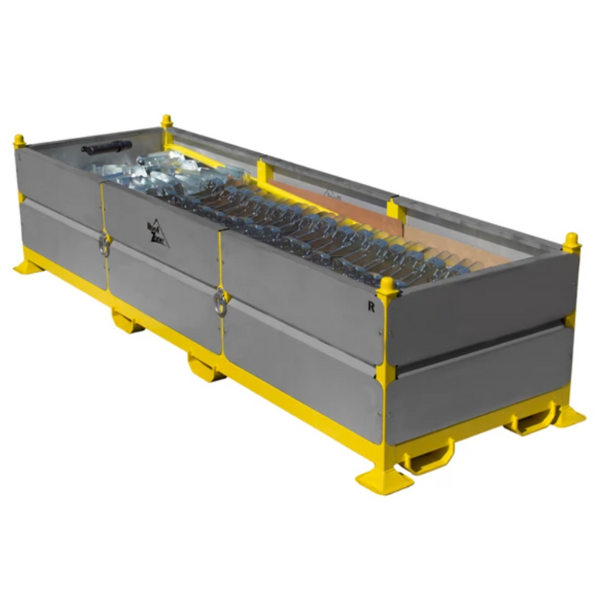

• Packaging: Stackable container with hoist rings and forklift pockets
• Components included:
  • 76 × 10 ft Zip Rail, painted yellow
  • 8 × Adjustable Zip Rail 5–8 ft, zinc finish
  • 4 × Adjustable Zip Rail 32–48 in, zinc finish
  • 43 × Gravel Stop Brackets
  • 43 × ZipRail Stanchions
  • 6 × Corner Bracket Assemblies
  • 1 × Stack container
  • 43 × Safety Locking Pins
• Country of origin: USA
• Warranty: 1-Year Limited

• Place the stackable container near the rooftop edge to deploy components.
• Mount gravel stop brackets to the flat roof edge at planned stanchion intervals.
• Connect stanchions to brackets and insert zip rails using pop pins (no tools needed).
• Use corner assemblies for directional changes around roof perimeter.
• Secure all locking pins in place on stanchions and rails.
• Use forklift pockets or hoist rings to lift the assembled kit if needing rooftop access.
• Walk the full rail line, ensuring each connection is secure before work begins.
• After use, disassemble in reverse order, packing rails and components back into the container.

Q: How much coverage does the 70755 kit provide?
A: It provides 420 ft of guardrail coverage.

Q: Do I need tools to assemble this guardrail system?
A: No, the stanchions and rails use pop pin connections for tool-free installation.

Q: Can I transport the assembled kit overhead?
A: Yes, the kit container includes forklift pockets and hoist rings for rooftop delivery.

Q: What roof edge conditions does the gravel stop bracket accommodate?
A: It is designed to mount securely on flat roof edges to support the guardrail system.

Q: What standards does the kit comply with?
A: It meets OSHA 1910.29 and OSHA 1926.502 guardrail / fall protection requirements.
